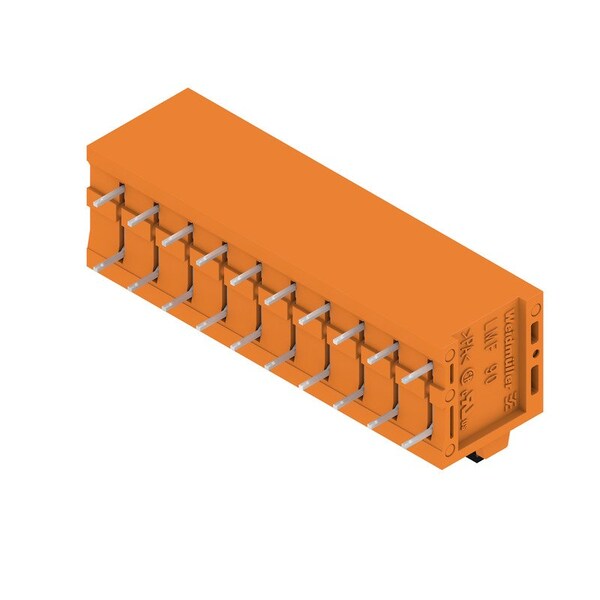

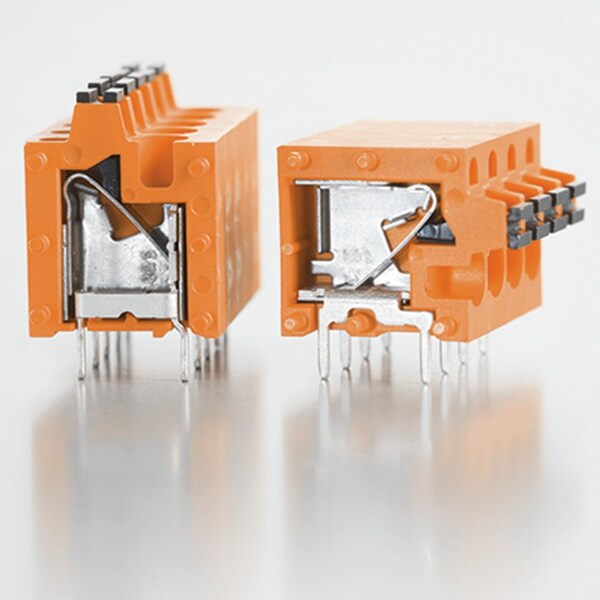

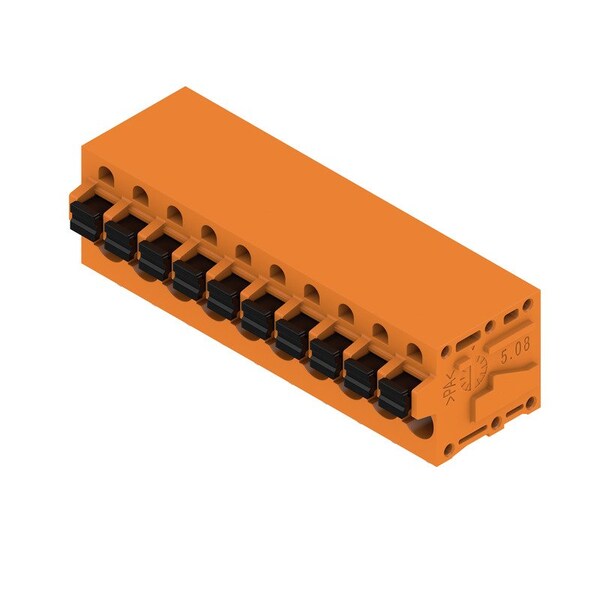

Barrier Terminal Blocks Lmf 5.08/10/90 3.5Sn Or Bx

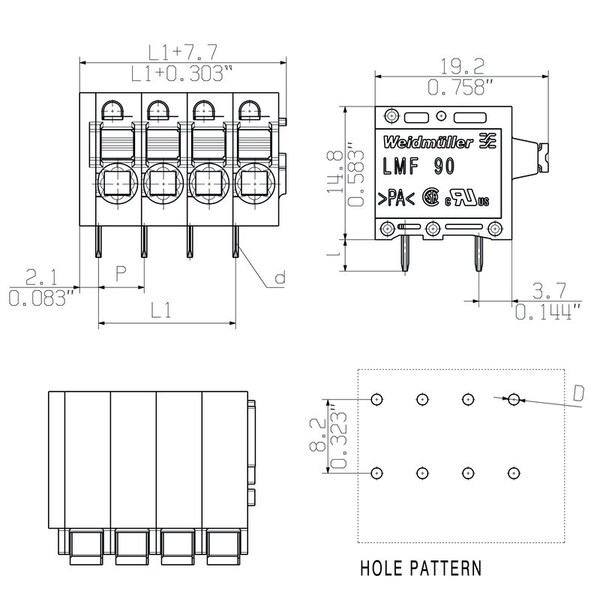

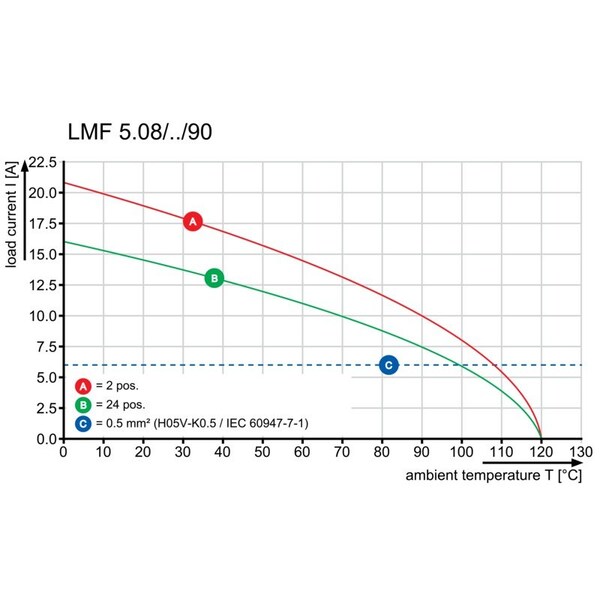

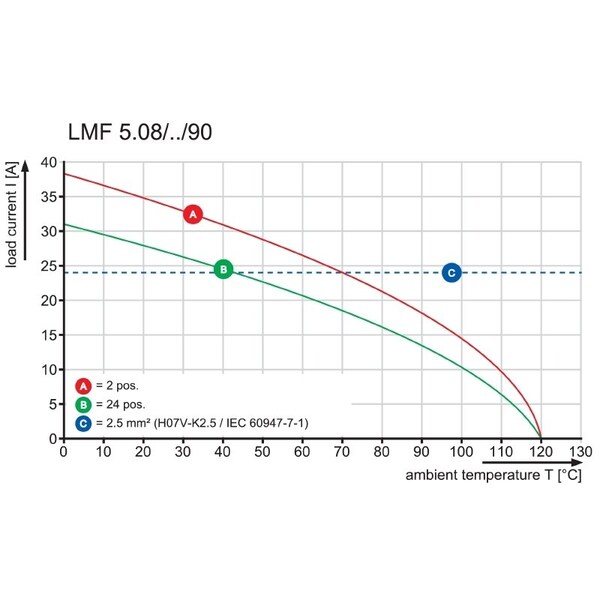

| Number of Poles | 10 |
|---|---|
| Flexible, max. H05(07) V-K | 2.5 sq mm |
| Solid, min. H05(07) V-U | 0.5 sq mm |
| L1 in inches | 1.8 in |
| Operating temperature, min. | -50 °C |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 4 kV |
| Rated voltage (Use group D / UL 1059) | 300 V |
| Temperature range, installation, max. | 120 deg C |
| Certificate No. (cURus) | E60693 |
| VPE height | 0 m |
| w. wire end ferrule, DIN 46228 pt 1, max. | 2.5 sq mm |
| Flexible, min. H05(07) V-K | 0.25 sq mm |
| Depth (inches) | 0.756 in |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 4 kV |
| Touch-safe protection acc. to DIN VDE 0470 | IP 20 |
| Rated current (Use group B / UL 1059) | 20 A |
| Solder eyelet hole diameter (D) | 1.1 mm |
| Institute (CSA) | CSA |
| Plug gauge in accordance with EN 60999 a x b; ø | 2.4 mm x 1.5 mm |
| Solder pin length (l) | 3.5 mm |
| Storage temperature, max. | 55 deg C |
| Operating temperature, max. | 120 deg C |
| Rated voltage (Use group B / CSA) | 300 V |
| Colour of operational elements | black |
| Contact surface | tinned |
| Temperature range, installation, min. | -25 deg C |
| w. wire end ferrule, DIN 46228 pt 1, min. | 0.25 sq mm |
| Width (inches) | 2.103 in |
| Max. clamping range | 2.5 sq mm |
| Material of operational elements | PBT |
| Colour chart (similar) | RAL 2000 |
| Number of Rows | 1 |
| Max. adjacent poles per row | 24 |
| Rated current, min. number of poles (Tu=40°C) | 24 A |
| Solid, max. H05(07) V-U | 2.5 sq mm |
| Touch-safe protection acc. to DIN VDE 57 106 | Safe from finger touch |
| w. plastic collar ferrule, DIN 46228 pt 4, max. | 2.5 sq mm |
| w. plastic collar ferrule, DIN 46228 pt 4, min. | 0.25 sq mm |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 4 kV |
| Tinning type | matt |
| Rated current, max. number of poles (Tu=20°C) | 24 A |
| Rated voltage for surge voltage class / pollution degree III/3 | 250 V |
| Wire cross-section, AWG, max. | AWG 12 |
| Approvals | CSA, cURus, EAC |
| VPE width | 0 m |
| Coating | 4-6 μm SN |
| Rated voltage for surge voltage class / pollution degree II/2 | 400 V |
| Institute (cURus) | cURus |
| Screwdriver blade standard | DIN 5264 |
| VPE length | 0 m |
| UL 94 flammability rating | V-0 |
| Rated current, max. number of poles (Tu=40°C) | 24 A |
| Solder pin dimensions | d = 0.8 mm |
| Number of solder pins per pole | 2 |
| Wire connection cross section AWG, min. | AWG 24 |
| Layer structure of solder connection | 4-6µm Sn matt |
| tested acc. to standard | IEC 60664-1, IEC 61984 |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire cross-section, AWG, min. | AWG 24 |
| Rated current (Use group D / CSA) | 10 A |
| Rated current, min. number of poles (Tu=20°C) | 24 A |
| Height (inches) | 0.72 in |
| Rated current (Use group B / CSA) | 20 A |
| Colour | orange |
| Short-time withstand current resistance | 3 x 1s with 120 A |
| Rated voltage (Use group D / CSA) | 300 V |
| Conductor outlet direction | 90° |
| Stripping length | 10 mm |
| Storage temperature, min. | -25 °C |

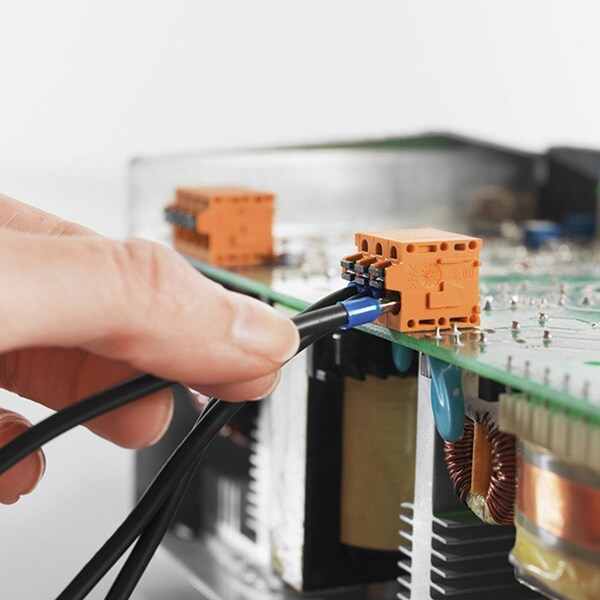

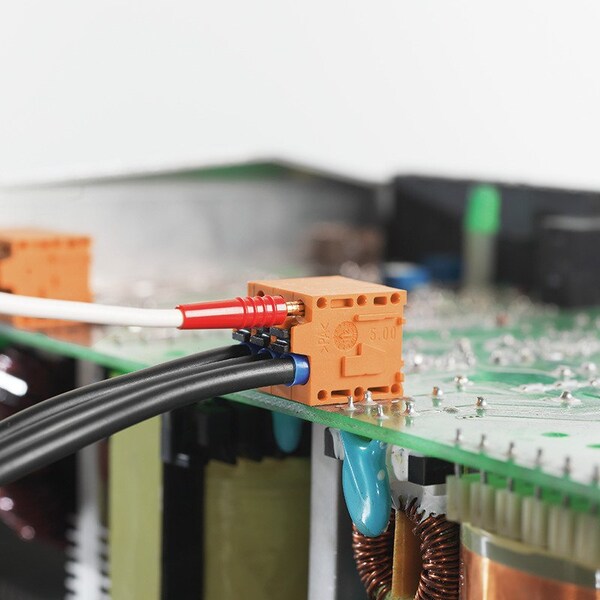

| Wire connection method | PUSH IN |

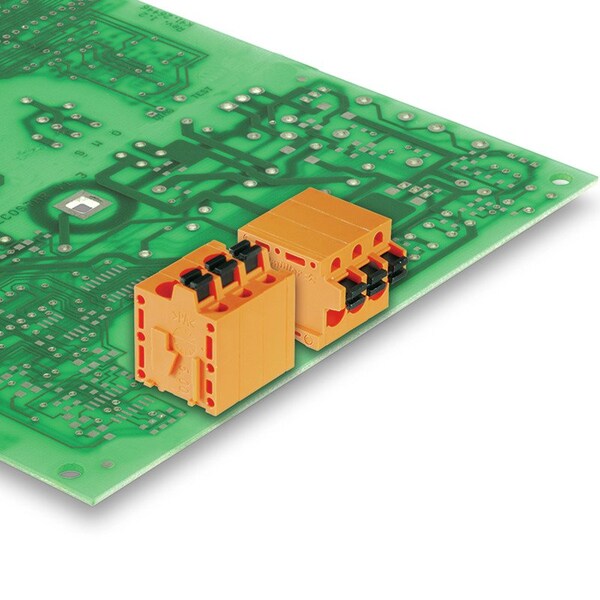

| Mounting onto the PCB | THT solder connection |
| Contact material | CuSn |
| Certificate No. (CSA) | 20,039 to 1,815,154 |
| Max. relative humidity during storage | 80 % |
| Comparative Tracking Index (CTI) | ≥600 |
| Height of lowest version | 14.8 mm |
| UL File Number Search | E60693 |
| Rated voltage (Use group B / UL 1059) | 300 V |
| Screwdriver blade | 0.6 x 3.5 |
| Insulation strength | ≥108 Ω |
| Insulating material | Wemid |
| Clamping range, max. | 2.5 sq mm |
| Rated current (Use group D / UL 1059) | 10 A |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| Clamping range, min. | 0.12 sq mm |
| Rated voltage for surge voltage class / pollution degree III/2 | 320 V |
| Pitch in inches (P) | 0.2 in |
| Package Quantity | 1 |
