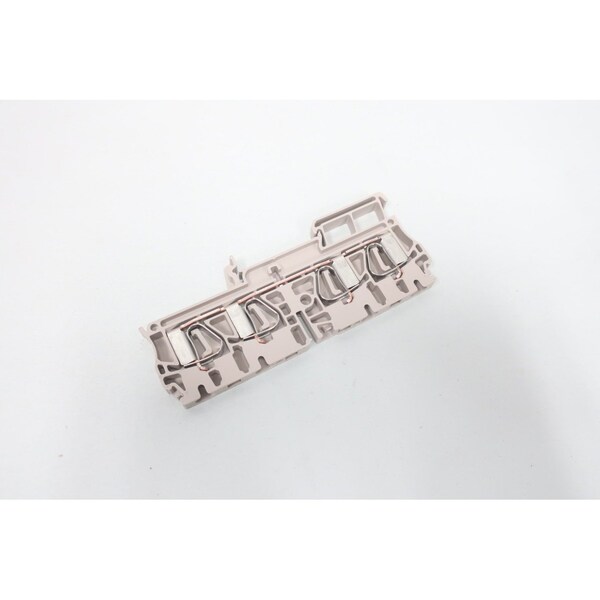

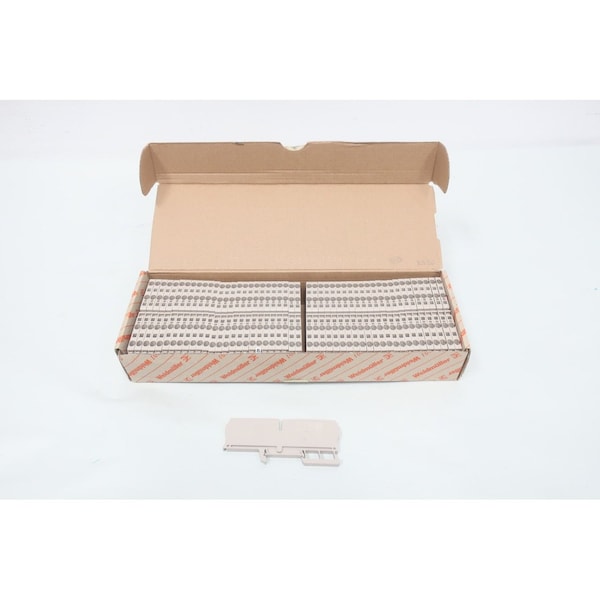

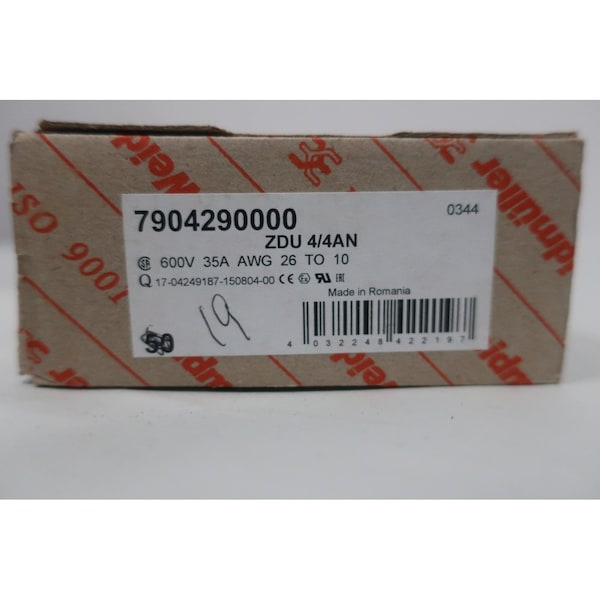

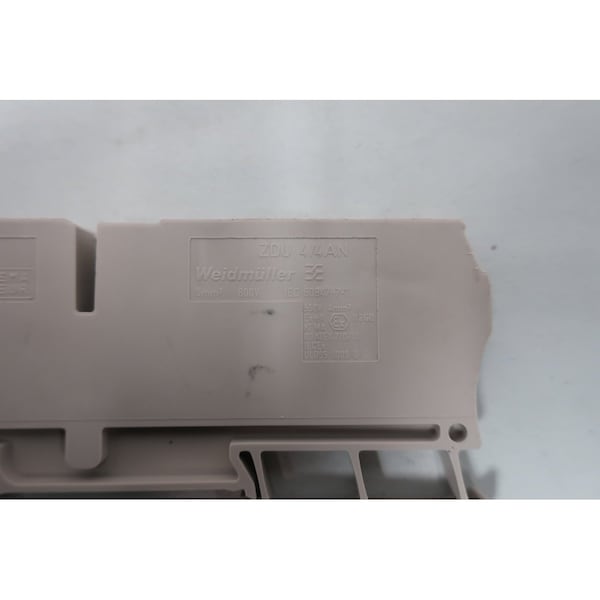

Caja de 50 terminales y bloques de contacto.
| Standards | IEC 60947-7-1 |
|---|---|
| Material | Wemid |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Conductor size Factory wiring max. (UR) | 10 AWG |
| Current at maximum wires | 41 A |
| Width (inches) | 0.24 in |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 4 sq mm |
| Approvals | CE, CSA, CURUSEX, DEMKOATEX, EAC, IECEXULD, KEMAATEX, KEMAKEUR, LLOYDSREG, RINA, UR |
| Rated cross-section | 4 mm² |
| Voltage size B (CSA) | 600 V |
| Number of similar terminals | 1 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 sq mm |
| Pollution severity | 3 |
| Wire connection cross section, finely stranded, max. | 6 sq mm |
| Rated current | 32 A |
| Current size D (CSA) | 5 A |
| Rated voltage | 800 V |
| Storage temperature, max. | 40 deg C |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Version | Tension-clamp connection, for plug-in cross-connector, One end without connector |
| Type of mounting | Snap-on |
| Operating Temperature Range | Conformity, For operating temperature range see EC Design Test Certificate, IEC Ex-Certificate |
| Wire cross section max. (ATEX) | 4 sq mm |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Storage temperature, min. | 10 °C |
| Wire connection cross-section, solid core, max. | 6 sq mm |
| Connection cross-section, stranded, min. | 0.5 sq mm |
| Wire cross section max. (IECEX) | 6 sq mm |
| Colour | beige |
| Max. voltage (IECEX) | 550 V |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Marking EN 60079-7 | Ex eb II C Gb |
| Connection cross-section, stranded, max. | 6 sq mm |
| Voltage size D (CSA) | 600 V |
| Voltage size C (CSA) | 600 V |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 4 sq mm |
| Open sides | right |
| Current size C (CSA) | 35 A |
| Twin wire-end ferrules, max. | 1.5 sq mm |
| Conductor size Field wiring max. (UR) | 10 AWG |
| Number of clamping points per level | 4 |
| Type of connection | Tension-clamp connection |
| Number of potentials per tier | 1 |
| Rated impulse withstand voltage | 8 kV |
| Clamping range, min. | 0.13 sq mm |
| Continuous operating temp., min. | -50 deg C |
| Wire cross section min. (CSA) | 26 AWG |
| Current size B (CSA) | 35 A |
| Current (IECEX) | 30 A |
| Voltage size C (UR) | 600 V |
| Continuous operating temp., max. | 120 deg C |
| Gauge to IEC 60947-1 | A4 |
| Certificate No. (ATEX) | KEMA00ATEX2107U |
| Current size C (UR) | 33 A |
| UL File Number Search | E60693 |
| Certificate No. (CSA) | 200,039 to 1,152,892 |
| Connection direction | top |
| Installation advice | Direct mounting |
| Conductor size Field wiring min. (UR) | 26 AWG |
| Rail | TS 35 |
| Depth (inches) | 1.693 in |
| Number of connections | 4 |
| Storage temperature | 10 deg C |
| Current (ATEX) | 28 A |
| Certificate No. (UR) | E60693 |
| Number of Levels | 1 |
| Clamping range, max. | 6 sq mm |
| UL 94 flammability rating | V-0 |
| Max. voltage (ATEX) | 550 V |
| Height (inches) | 4.114 in |
| Certificate No. (IECEX) | IECEXULD15.0008U |
| Depth including DIN rail | 43.5 mm |
| PE connection | No |
| Stripping length | 12 mm |
| Wire cross section max. (CSA) | 10 AWG |
| Conductor size Factory wiring min. (UR) | 26 AWG |
| Power loss in accordance with IEC 60947-7-x | 1.02 W |
| Wire connection cross section AWG, max. | AWG 10 |
| End cover plate required | Yes |
| Blade Size | 0.6 mm x 3.5 mm |
| Package Quantity | 1 |
