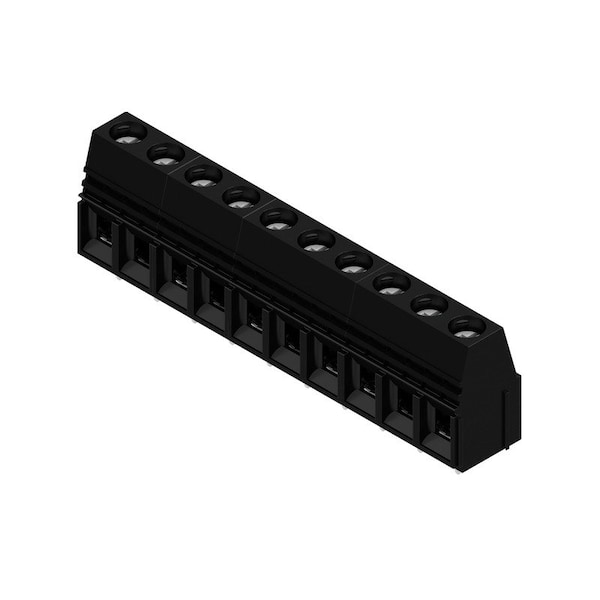

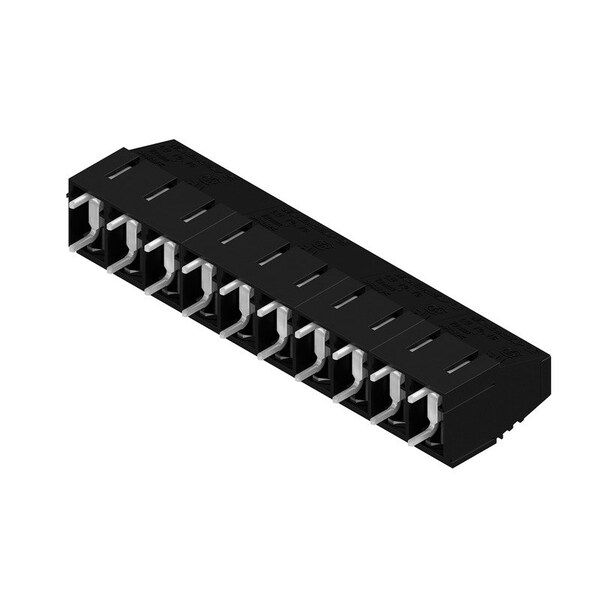

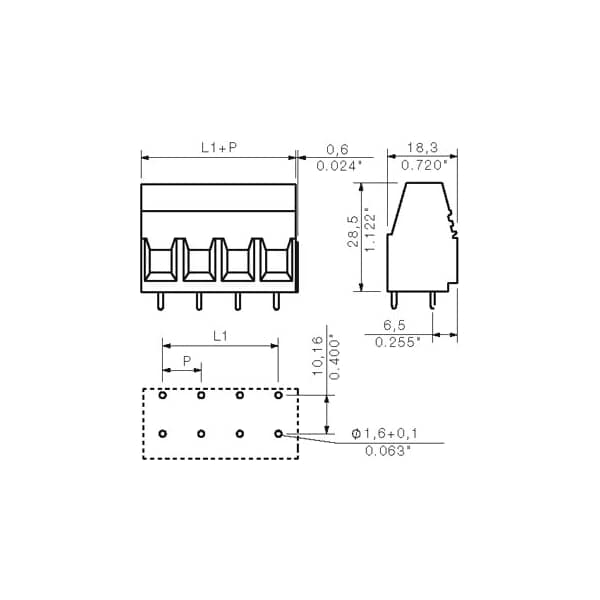

Pcb Terminal, 10.16 Mm, No. Of Poles: 10, 90 Degree

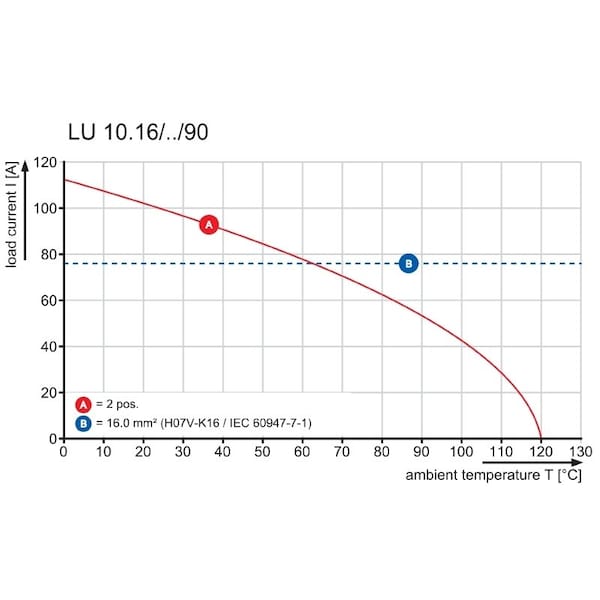

| Number of Poles | 10 |
|---|---|
| Height (inches) | 1.299 in |
| Clamping range, min. | 0.14 sq mm |
| Insulation strength | ≥108 Ω |
| Rated current (Use group C / CSA) | 65 A |
| Institute (CSA) | CSA |
| Rated voltage (Use group B / UL 1059) | 300 V |
| Volume resistance | 0.5 milliohm |
| Wire cross-section, AWG, max. | AWG 6 |
| Rated current, min. number of poles (Tu=20°C) | 76 A |
| Certificate No. (CSA) | 200,039 to 1,198,743 |
| Storage temperature, min. | -25 °C |
| Depth (inches) | 0.72 in |
| Solid, min. H05(07) V-U | 0.5 sq mm |
| Rated voltage (Use group C / UL 1059) | 150 V |
| Wire connection cross section AWG, max. | AWG 8 |
| w. plastic collar ferrule, DIN 46228 pt 4, min. | 2.5 sq mm |
| tested acc. to standard | IEC 60664-1, IEC 61984 |
| Height of lowest version | 28.5 mm |
| Screwdriver blade | 1 x 5.5 |
| Operating temperature, min. | -50 °C |
| Solder eyelet hole diameter (D) | 1.6 mm |
| Rated current (Use group D / CSA) | 10 A |
| Rated voltage (Use group D / CSA) | 300 V |
| Mounting onto the PCB | THT solder connection |
| Clamping range, max. | 16 sq mm |
| w. wire end ferrule, DIN 46228 pt 1, max. | 10 sq mm |
| Flexible, min. H05(07) V-K | 0.5 sq mm |
| w. plastic collar ferrule, DIN 46228 pt 4, max. | 10 sq mm |
| Tightening torque, min. | 1.2 N-m |
| VPE width | 0 m |
| Insulating material | Wemid |
| Rated voltage (Use group B / CSA) | 300 V |
| Flexible, max. H05(07) V-K | 16 sq mm |
| Certificate No. (UR) | E60693 |
| Layer structure of solder connection | 1.5-3µm Ni / 4-6µm Sn matt |
| Institute (UR) | UR |
| UL File Number Search | E60693 |
| Solder pin dimensions = d tolerance | 0 mm, -0,15 |
| w. wire end ferrule, DIN 46228 pt 1, min. | 2.5 sq mm |
| Plug gauge in accordance with EN 60999 a x b; ø | 5.4 mm x 5.1 mm; 5.3 mm |
| Wire cross-section, AWG, min. | AWG 26, AWG 22 |
| Contact material | E-Cu |
| VPE height | 0 m |
| Max. relative humidity during storage | 80 % |
| Colour | black |
| Touch-safe protection acc. to DIN VDE 0470 | IP20 plugged / IP10 unplugged |
| Width (inches) | 4 in |
| Number of solder pins per pole | 2 |
| Stripping length | 12 mm |
| Screwdriver blade standard | DIN 5264 |
| Temperature range, installation, min. | -25 deg C |
| Short-time withstand current resistance | 2 x 1s with 700 A |
| Solder pin length (l) | 4.5 mm |
| Pitch in inches (P) | 0.4 in |
| Touch-safe protection acc. to DIN VDE 57 106 | Safe from finger touch |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 6 kV |
| Rated voltage for surge voltage class / pollution degree III/2 | 690 V |
| Stranded, min. H07V-R | 6 mm² |
| Solder pin dimensions | 1.2 mm x 1.2 mm |
| Rated voltage for surge voltage class / pollution degree III/3 | 690 V |
| Rated voltage (Use group C / CSA) | 150 V |
| Rated current (Use group B / UL 1059) | 65 A |
| Rated voltage (Use group D / UL 1059) | 600 V |
| Clamping screw | M 4 |
| Rated current (Use group D / UL 1059) | 5 A |
| Insulating material group | I |
| Max. clamping range | 16 sq mm |
| Operating temperature, max. | 120 deg C |
| Rated voltage for surge voltage class / pollution degree II/2 | 1,000 V |
| Solid, max. H05(07) V-U | 16 sq mm |
| Contact surface | tinned |
| Temperature range, installation, max. | 120 deg C |
| Wire connection method | connection |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 4 kV |
| Colour chart (similar) | RAL 9011 |
| Approvals | CSA, EAC, UR |
| Conductor outlet direction | 90° |
| Rated current, max. number of poles (Tu=20°C) | 72 A |
| Rated current (Use group C / UL 1059) | 65 A |
| Wire connection cross section AWG, min. | AWG 22 |
| Storage temperature, max. | 55 deg C |
| Stranded, max. H07V-R | 16 sq mm |
| L1 in inches | 3.6 in |
| Max. adjacent poles per row | 10 |
| Tightening torque, max. | 1.5 N-m |
| UL 94 flammability rating | V-0 |
| Comparative Tracking Index (CTI) | ≥600 |
| Rated current (Use group B / CSA) | 65 A |
| Number of Rows | 1 |
| Rated current, max. number of poles (Tu=40°C) | 62 A |
| VPE length | 0 m |
| Rated current, min. number of poles (Tu=40°C) | 76 A |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 6 kV |
| Package Quantity | 1 |
