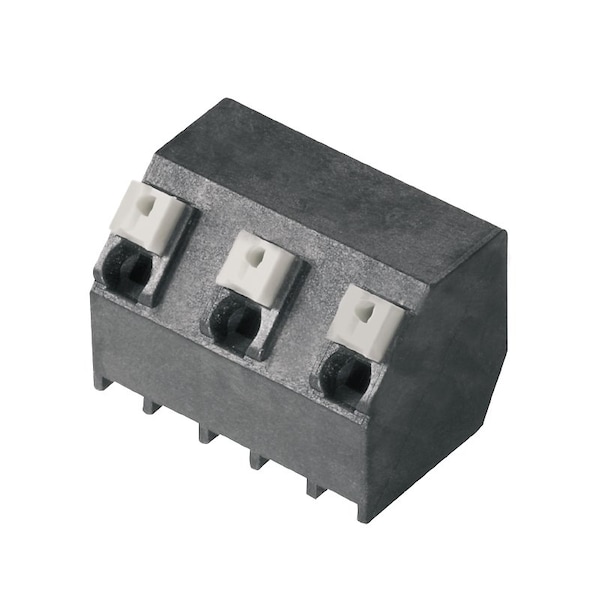

Pluggable Terminal Blocks Lsf-Smt 7.50/02/135 3.5Sn Bk Tu

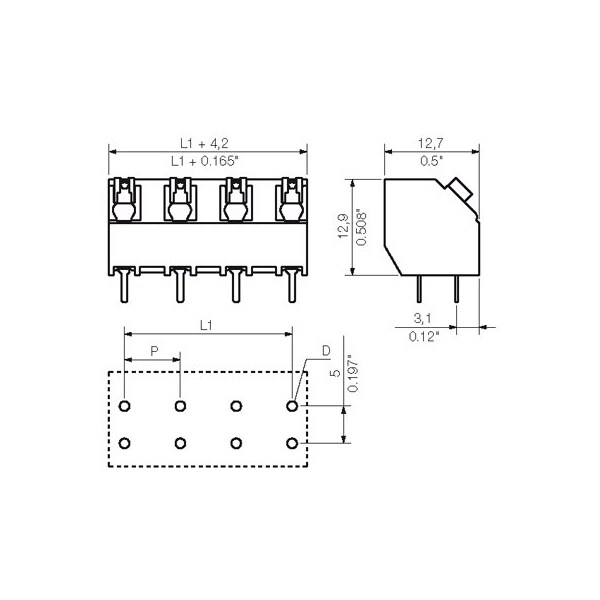

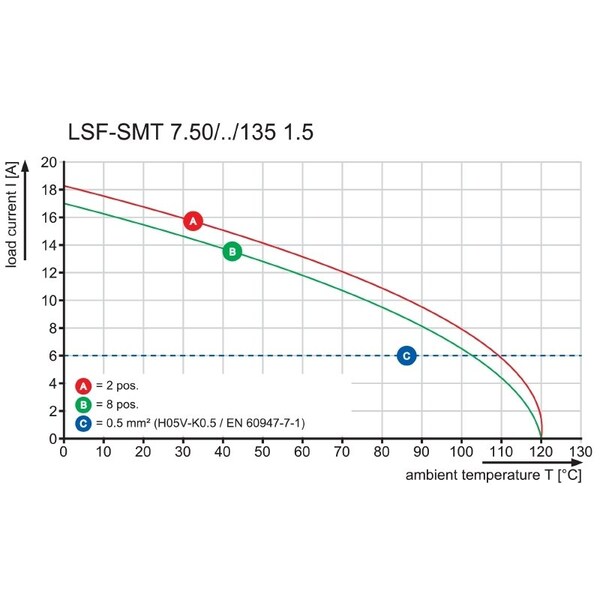

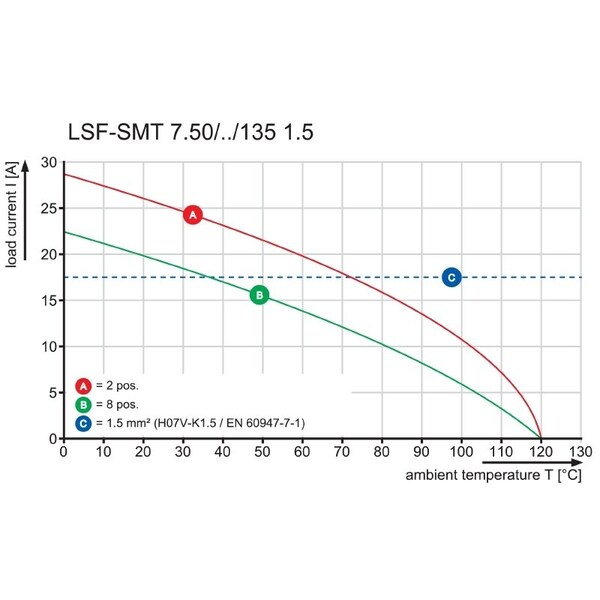

| Number of Poles | 2 |
|---|---|
| Max. clamping range | 1.5 sq mm |
| Stripping length | 8 mm |
| Certificate No. (cURus) | E60693 |
| Solder eyelet hole diameter (D) | 1.1 mm |
| Certificate No. (CSA) | 200,039 to 1,664,286 |
| Temperature range, installation, max. | 120 deg C |
| Number of Rows | 1 |
| VPE length | 10 mm |
| Institute (cURus) | cURus |
| Rated voltage for surge voltage class / pollution degree III/3 | 500 V |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 6 kV |
| Solid, min. H05(07) V-U | 0.2 sq mm |
| Colour | black |
| Mounting onto the PCB | THT/THR solder connection |
| Insulating material group | IIIa |
| Short-time withstand current resistance | 3 x 1s with 80 A |
| Approvals | CSA, cURus, EAC, VDE |
| Rated current (Use group D / CSA) | 10 A |
| L1 in inches | 0.295 in |
| Insulation strength | ≥108 Ω |
| UL 94 flammability rating | V-0 |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| Wire connection cross section AWG, max. | AWG 14 |
| Operating temperature, max. | 120 deg C |
| Rated current, max. number of poles (Tu=40°C) | 15 A |
| Clamping range, max. | 1.5 sq mm |
| Rated current (Use group B / UL 1059) | 12 A |
| Max. relative humidity during storage | 80 % |
| Pitch in inches (P) | 0.295 in |
| Storage temperature, max. | 55 deg C |
| Solder pin dimensions | 0.35 mm x 0.8 mm |
| Number of solder pins per pole | 2 |
| Comparative Tracking Index (CTI) | ≥175 |
| Height (inches) | 0.646 in |
| Clamping range, min. | 0.13 sq mm |
| Rated current (Use group D / UL 1059) | 10 A |
| Solid, max. H05(07) V-U | 1.5 sq mm |
| Solder pin length tolerance | +0.1 / -0.3 mm |
| Rated voltage (Use group D / CSA) | 300 V |
| Rated voltage (Use group B / CSA) | 300 V |
| Volume resistance | 1.6 milliohm |
| Touch-safe protection acc. to DIN VDE 57 106 | Safe from finger touch |
| w. plastic collar ferrule, DIN 46228 pt 4, max. | 0.75 sq mm |
| Surface Resistance | Rs = 109 - 1012 Ω |
| Moisture Level (MSL) | 1 |
| Storage temperature, min. | -25 °C |
| Colour chart (similar) | RAL 9011 |
| Institute (CSA) | CSA |
| Wire cross-section, AWG, max. | AWG 14 |
| Wire cross-section, AWG, min. | AWG 28 |
| Layer structure of solder connection | 4-6µm Sn matt |
| Wire connection cross section AWG, min. | AWG 28 |
| Rated voltage for surge voltage class / pollution degree III/2 | 630 V |
| UL File Number Search | E60693 |
| Conductor outlet direction | 135° |
| Flexible, max. H05(07) V-K | 1.5 sq mm |
| Rated current, max. number of poles (Tu=20°C) | 17.5 A |
| Rated current (Use group B / CSA) | 10 A |
| Operating temperature, min. | -50 °C |
| Height of lowest version | 12.9 mm |
| w. plastic collar ferrule, DIN 46228 pt 4, min. | 0.25 sq mm |

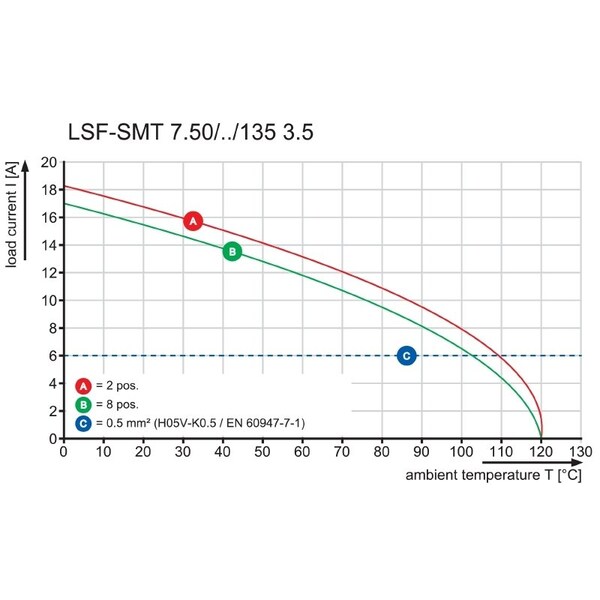

| Rated current, min. number of poles (Tu=40°C) | 17.5 A |
| Solder pin dimensions = d tolerance | 0 / -0.1 mm |
| Colour of operational elements | white |
| Touch-safe protection acc. to DIN VDE 0470 | IP 20 |
| Wire connection method | PUSH IN |
| w. wire end ferrule, DIN 46228 pt 1, max. | 1.5 sq mm |
| tested acc. to standard | IEC 60664-1, IEC 61984 |
| w. wire end ferrule, DIN 46228 pt 1, min. | 0.25 sq mm |
| Width (inches) | 0.461 in |
| Insulating material | LCP GF |
| Flexible, min. H05(07) V-K | 0.2 sq mm |
| Rated voltage for surge voltage class / pollution degree II/2 | 800 V |
| VPE height | 555 mm |
| Rated voltage (Use group D / UL 1059) | 300 V |
| Temperature range, installation, min. | -30 deg C |
| Rated current, min. number of poles (Tu=20°C) | 17.5 A |
| Material of operational elements | PPA GF |
| Contact material | Copper alloy |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 6 kV |
| Rated voltage (Use group B / UL 1059) | 300 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 6 kV |
| Depth (inches) | 1/2 in |
| VPE width | 20 mm |
| Solder pin length (l) | 3.5 mm |
| Package Quantity | 1 |
