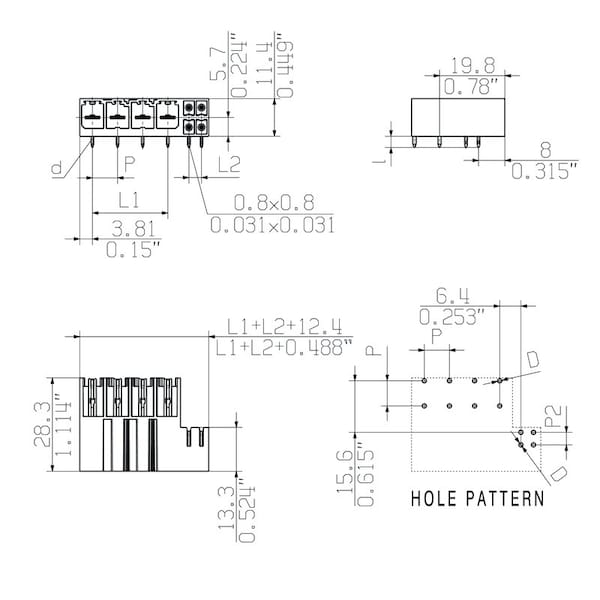

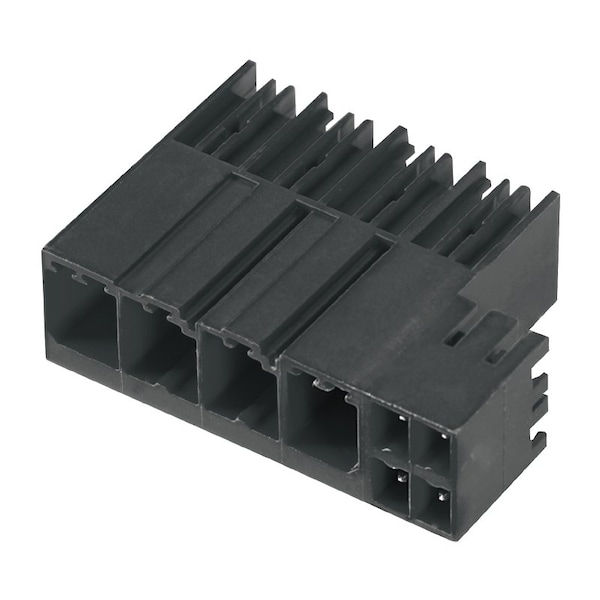

Pluggable Terminal Blocks Sv 7.62Hp/02/90G Sc/04R Sn Bk Bx
| Number of Poles | 2 |
|---|---|
| Touch-safe protection acc. to DIN VDE 0470 | IP 20 |
| Rated current (Use group C / CSA) | 33 A |
| Rated impulse voltage for overvoltage class/pollution severity level III/2 (Signal) | 2.5 kV |
| Pitch in inches (P) | 0.3 in |
| Rated current (Use group C / UL 1059) (Signal) | 5A |
| Plugging cycles | 25 |
| Contact material (Signal) | CuMg |
| PCB hole diameter tolerance (Signal) | ± 0.1 mm |
| Outgoing elbow | 90° |
| Rated voltage (Use group C / UL 1059] (Signal) | 50 V |
| L1 in inches | 0.3 in |
| Rated voltage (Use group B / UL 1059] (Signal) | 300 V |
| Rated voltage (Use group C / UL 1059) | 300 V |
| VPE length | 35 mm |
| Rated voltage (Use group B / CSA) | 300 V |
| Short-time withstand current resistance | 3 x 1s with 420 A |
| Approvals | CSA, cURus, EAC |
| Institute (cURus) | cURus |
| Contact surface (Signal) | tinned |
| Rated current (Use group B / UL 1059) (Signal) | 5A |
| Operating temperature, min. | -50 °C |
| Rated current (Use group B / CSA) (Signal) | 9A |
| Number of rows (Signal) | 2 |
| Rated current (Use group C / UL 1059) | 35 A |
| Tolerance of solder pin position | ± 0.1 mm |
| Rated voltage for overvoltage class/pollution severity level III/3 (Signal) | 160 V |
| Rated voltage (Use group D / CSA) | 600 V |
| Number of solder pins per pole (Signal) | 1 |
| Layer structure of solder connection | 1-3µm Ni / 4-6µm Sn matt |
| Touch-safe protection acc. to DIN VDE 57 106 | safe to back of hand above the printed circuit board |
| Number of solder pins per pole | 2 |
| Pitch in inches (Signal) | 0.15 inch |
| Colour | black |
| Rated current, min. number of poles (Tu=20°C) | 41 A |
| Institute (CSA) | CSA |
| Solder pin dimensions | 0.8 mm x 1 mm |
| Rated voltage for surge voltage class / pollution degree II/2 | 1,000 V |
| Insulating material group | II |
| Rated current (Use group B / CSA) | 33 A |
| Colour chart (similar) | RAL 9011 |
| Solder pin length tolerance | +0.1 / -0.3 mm |
| Comparative Tracking Index (CTI) | ≥500 |
| Temperature range, installation, max. | 130 deg C |
| UL File Number Search | E60693 |
| Rated voltage for overvoltage class/pollution severity level III/2 (Signal) | 160 V |
| L2 in inch | 0.15 inch |
| Insulating material | PA GF |
| Rated voltage for overvoltage class/pollution severity level II/2 (Signal) | 320 V |
| Rated voltage for surge voltage class / pollution degree III/2 | 630 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 6 kV |
| GWFI | 960 °C |
| Solder pin dimensions (Signal) | 0.8 x 0.8 mm |
| Type of connection | Board connection |
| Clearance distance, min. | 6.9 mm |
| Max. relative humidity during storage | 80 % |
| Rated current (Use group C / CSA) (Signal) | 9A |
| VPE width | 135 mm |
| Rated voltage (Use group C / CSA) | 300 V |
| Solder pin length (l) | 3.5 mm |
| Rated current (Use group D / CSA) (Signal) | 9A |
| Rated current, max. number of poles (Tu=40°C) | 41 A |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 6 kV |
| Depth (inches) | 1.114 in |
| UL 94 flammability rating | V-0 |
| Rated impulse voltage for overvoltage class/pollution severity level III/3 (Signal) | 2.5 kV |
| Volume resistance | 2 milliohm |
| Rated voltage (Use group B / UL 1059) | 300 V |
| tested acc. to standard | IEC 60664-1, IEC 61984 |
| Rated voltage (Use group B / CSA) (Signal) | 300 V |
| Rated current (Use group D / CSA) | 5 A |
| PCB hole diameter (Signal) | 1.3 mm |
| Solder eyelet hole diameter (D) | 1.4 mm |
| Storage temperature, max. | 55 deg C |
| Rated voltage (Use group C / CSA) (Signal) | 50 V |
| Short-time withstand current resistance (Signal) | 3 x 1s with 80 A |
| Certificate No. (cURus) | E60693 |
| Rated current (Use group D / UL 1059) | 5 A |
| Storage temperature, min. | -25 °C |
| Rated current (Use group B / UL 1059) | 35 A |
| Rated voltage (Use group D / UL 1059) | 600 V |
| Number of poles (Signal) | 4 |
| Certificate No. (CSA) | 200,039 to 1,121,690 |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| Height (inches) | 0.587 in |
| Rated current, max. number of poles (Tu=20°C) | 41 A |
| Creepage distance, min. | 9.6 mm |
| Height of lowest version | 11.4 mm |
| Contact material | Copper alloy |
| Temperature range, installation, min. | -25 deg C |
| Operating temperature, max. | 130 deg C |
| Rated current, min. number of poles (Tu=40°C) | 41 A |
| Contact surface | tinned |
| Rated impulse voltage for overvoltage class/pollution severity level II/2 (Signal) | 2.5 kV |
| Insulation strength | ≥108 Ω |
| Pin series quantity | 1 |
| VPE height | 350 mm |
| Layer structure of plug contact | 1-3µm Ni / 4-6µm Sn matt |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 6 kV |
| Mounting onto the PCB | THT solder connection |
| Number of Rows | 1 |
| Rated voltage for surge voltage class / pollution degree III/3 | 630 V |
| Package Quantity | 1 |
