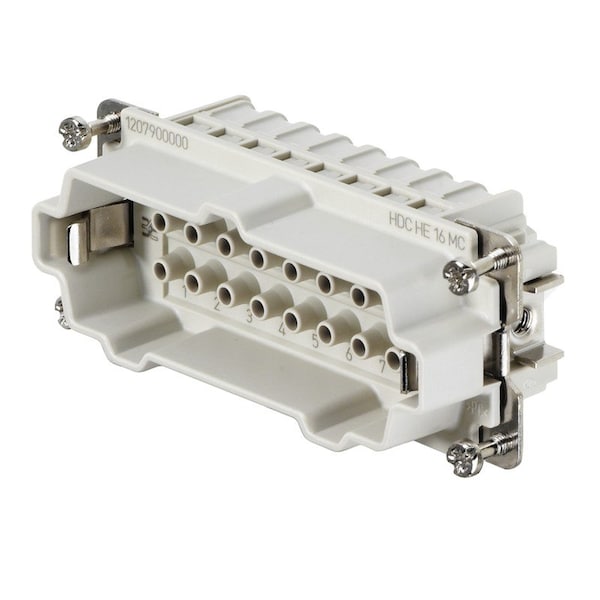

Rack And Panel Connector 16 Contact(S) Male
| Min. Single Wire Size | 20 AWG |
|---|---|
| Max. Single Wire Size | 12 AWG |
| Series | HE |
| Max. Voltage | 600V AC/DC |
| Height | 34 mm |
| Width | 1.339 in |
| Length | 84.5 mm |
| Wire Range | 4 mm2 |
| Item | HDC Insert |
| Insulation Material | Polycarbonate |
| Terminal Type | Screw |
| Green Environmental Attribute | Pollution Degree 3 |
| Depth | 3.327 in |
| Type | Pin |
| Number of Contacts | 16 |
| Max. Temp. | 125 deg C |
| Current Rating | 16 A |
| Standards | CSA; cURus; DNV GL; EAC; UL E92202 |
| Flammability Rating | UL 94 V-0 |
| Package Quantity | 1 |
