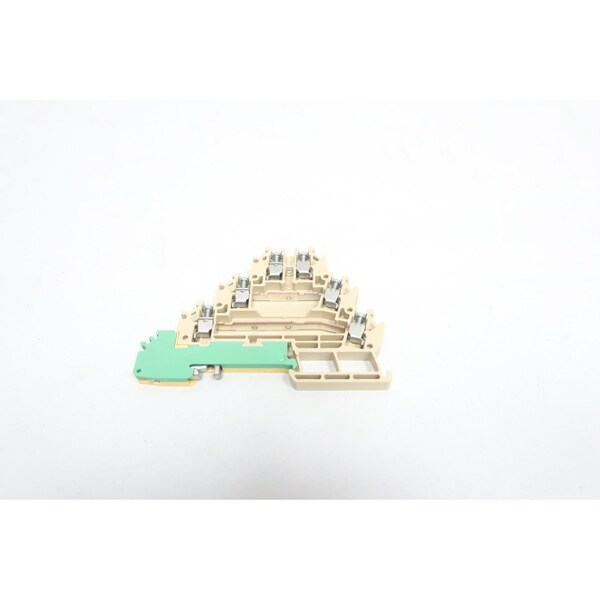

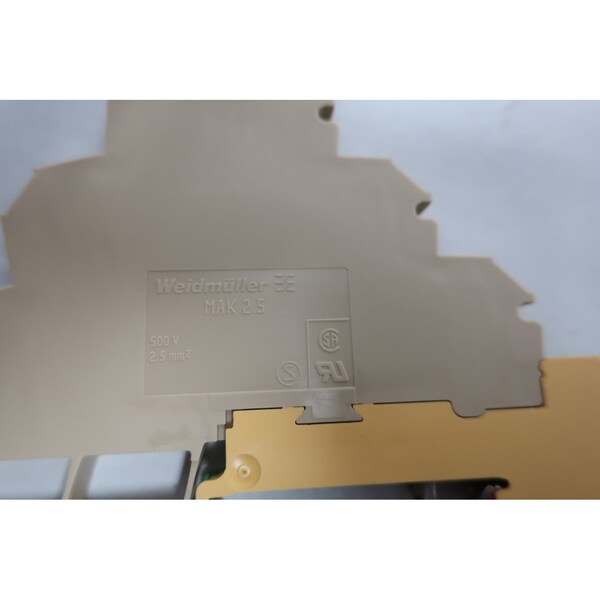

Terminal y bloque de contacto, 1615270000
| Type | MAK 2.5 |
|---|---|
| Standards | IEC 60947-7-1 (-7-2) |
| Material | PA 66 |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max. | 0.75 sq mm |
| Width (inches) | 0.244 in |
| Wire cross section max. (CSA) | 12 AWG |
| Voltage size D (UR) | 300 V |
| Number of connections | 7 |
| Voltage size D (CSA) | 300 V |
| Number of potentials | 4 |
| Wire connection cross section, solid core, min. rated connection | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max. | 2.5 mm² |
| No. of clamping points per level | 2 |
| End cover plate required | Yes |
| Clamping range, rated connection, min. | 0.13 sq mm |
| Rated current | 24 A |
| Wire connection cross section, solid core max. rated connection | 4 mm² |
| Conductor size Factory wiring min. (UR) | 26 AWG |
| Conductor size Factory wiring max. (UR) | 12 AWG |
| Clamping screw | M 2.5 |
| Clamping range, rated connection, max. | 4 sq mm |
| Pollution severity | 3 |
| Depth (inches) | 2.48 in |
| Conductor size Field wiring max. (UR) | 12 AWG |
| Height (inches) | 3.465 in |
| Voltage size C (CSA) | 300 V |
| Version | Screw connection, With PE connection, One end without connector |
| Gauge to IEC 60947-1 | A3 |
| Rated voltage | 500 V |
| Certificate No. (UR) | E60693 |
| Conductor size Field wiring min. (UR) | 22 AWG |
| Open sides | right |
| Depth including DIN rail | 64 mm |
| Stripping length | 8 mm |
| Installation advice | Direct mounting |
| Current size B (CSA) | 10 A |
| Mounting rail | TS 35 |
| Wire cross section min. (CSA) | 26 AWG |
| Current at maximum wires | 31 A |
| Wire connection cross section, finely stranded, max. | 4 sq mm |
| Surge voltage category | III |
| Current size D (CSA) | 10 A |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Type of connection | Screw connection |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min. | 0.5 mm² |
| Current size D (UR) | 10A |
| Type of mounting | Snap-on |
| PE function | Yes |
| Wire connection cross section, stranded, rated connection, min. | 0.5 mm² |
| Connection direction | on side |
| Wire cross-section, finely stranded, two clampable wires, max. | 1 sq mm |
| Blade Size | 0.6 mm x 3.5 mm |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max. | 2.5 mm² |
| Volume resistance according to IEC 60947-7-x | 3.99 mΩ |
| Wire connection cross section, stranded, rated connection, max. | 4 mm² |
| Rated impulse withstand voltage | 6 kV |
| Current size C (CSA) | 10 A |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min. | 0.5 mm² |
| Tightening torque, min. | 0.4 N-m |
| Rated cross-section | 2.5 mm² |
| Colour | beige, yellow |
| UL File Number Search | E60693 |
| Tightening torque, max. | 0.6 N-m |
| UL 94 flammability rating | V-2 |
| Number of Levels | 4 |
| Continuous operating temp., max. | 100 deg C |
| Continuous operating temp., min. | -50 deg C |
| Number of potentials per tier | 1 |
| Wire connection cross section, finely stranded, two clampable wires, min. | 0.5 mm² |
| Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min. | 0.5 mm² |
| Certificate No. (CSA) | 12,400 to 320 |
| Voltage size B (CSA) | 300 V |
| PE connection | Yes |
| Approvals | UR, CSA, CE, EAC |

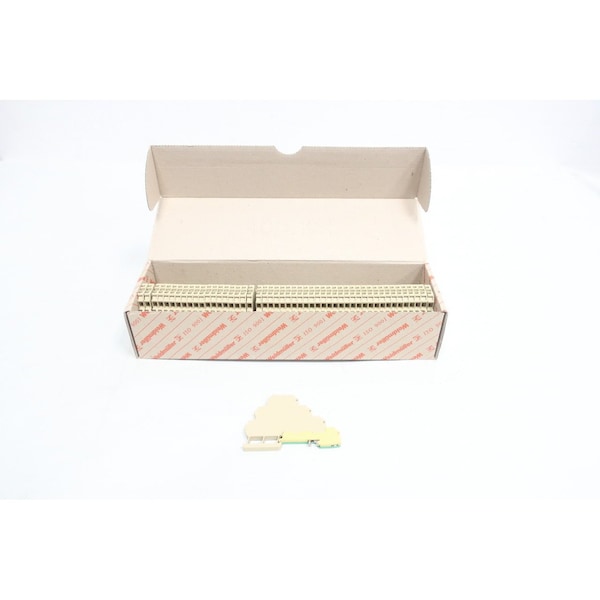

| Package Quantity | 50 |
