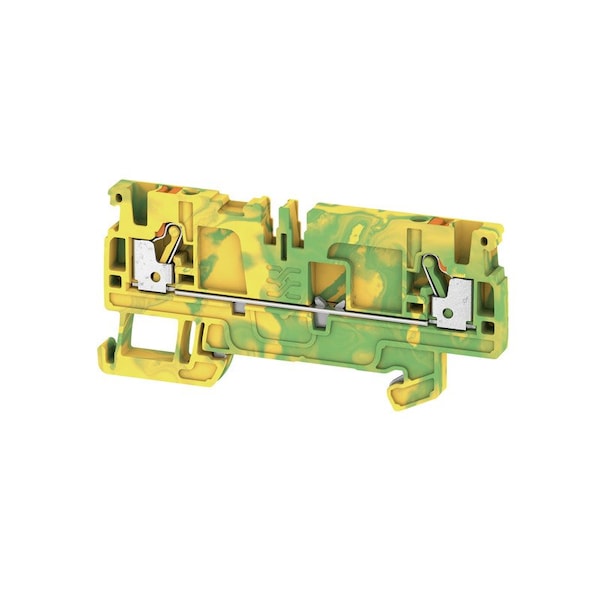

Terminal Block Clamp 2 Poles 24A 2.5Mm Green /
| Standards | IEC 60947-7-2 |
|---|---|
| Material | Wemid |
| Open sides | right |
| Storage temperature, min. | 10 °C |
| Wire cross section max. (CSA) | 12 AWG |
| Height (inches) | 3.051 in |
| Width (inches) | 0.201 in |
| Blade Size | 0.6 mm x 3.5 mm |
| Pollution severity | 3 |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Connection cross-section, stranded, max. | 2.5 sq mm |
| Voltage size D (CSA) | 600 V |
| Rail | TS 35 |
| Clamping range, min. | 0.14 sq mm |
| Stripping length | 10 mm |
| Surge voltage category | III |
| Voltage size B (CSA) | 600 V |
| Type of fixing | Snap-on |
| Installation advice | Rail |
| Max. voltage (IECEX) | 550 V |
| Number of potentials per tier | 1 |
| Number of potentials | 1 |
| Certificate No. (IECEX) | IECEXTUR16.0036U |
| Voltage size C (CSA) | 600 V |
| Depth (inches) | 1.437 in |
| Max. voltage (ATEX) | 550 V |
| Connection direction | top |
| Certificate No. (ATEX) | TUEV16ATEX7909U |
| Conductor size Factory wiring min. (cURus) | 28 AWG |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 sq mm |
| Voltage size D (cURus) | 600 V |
| Connection cross-section, stranded, min. | 0.5 sq mm |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire cross section min. (CSA) | 28 AWG |
| Current (ATEX) | 22 A |
| Continuous operating temp., min. | -60 deg C |
| Current (IECEX) | 22 A |
| Continuous operating temp., max. | 130 deg C |
| Storage temperature, max. | 40 deg C |
| Number of connections | 2 |
| End cover plate required | Yes |
| Depth including DIN rail | 37 mm |
| Voltage size B (cURus) | 600 V |
| Wire connection cross section, finely stranded, max. | 2.5 sq mm |
| Conductor size Factory wiring max. (cURus) | 12 AWG |
| Type of connection | PUSH IN |
| Gauge to IEC 60947-1 | A3 |
| Marking EN 60079-7 | Ex eb II C Gb |
| Clamping range, max. | 2.5 sq mm |
| Wire connection cross section AWG, min. | AWG 26 |
| UL 94 flammability rating | V-0 |
| PE connection | Yes |
| Conductor size Field wiring min. (cURus) | 28 AWG |
| Wire cross section max. (ATEX) | 2.5 sq mm |
| Rated cross-section | 2.5 mm² |
| Wire connection cross-section, solid core, max. | 2.5 sq mm |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 sq mm |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Voltage size C (cURus) | 600 V |
| Twin wire-end ferrules, max. | 0.75 sq mm |
| Colour | yellow, Green |
| Wire cross section max. (IECEX) | 2.5 sq mm |
| Certificate No. (cURus) | E60693 |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Number of Levels | 1 |
| Storage temperature | 10 deg C |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Conductor size Field wiring max. (cURus) | 12 AWG |
| Rated voltage to adjoining terminal | 800 V |
| Certificate No. (CSA) | 200,039 to 70,089,609 |
| Approvals | BURVER, CE, CSA, cURus, DNV GL, EAC, IECEXTUR, TUEVNATEX |
| PE function | Yes |
| Rated impulse withstand voltage | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| UL File Number Search | E60693 |
| Number of clamping points per level | 2 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 sq mm |
| Type of mounting | TS 35 |
| Package Quantity | 1 |
