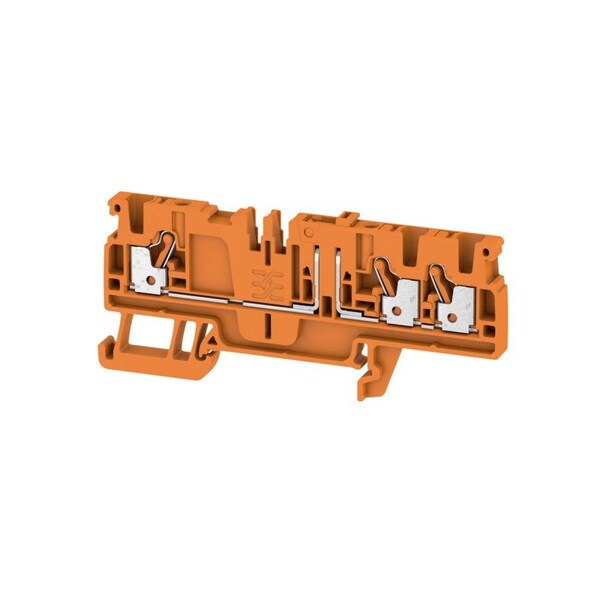

Test Disconnect Terminal Block Clamp 3 Poles 20A
| Standards | IEC 60947-7-1 |
|---|---|
| Material | Wemid |
| Clamping range, min. | 0.14 sq mm |
| Voltage size C (CSA) | 300 V |
| Connection cross-section, stranded, min. | 0.5 sq mm |
| Current size B (CSA) | 20 A |
| Current size D (cURus) | 5 A |
| Certificate No. (IECEX) | IECEXTUR16.0045U |
| Number of potentials per tier | 1 |
| Voltage size D (cURus) | 600 V |
| Wire connection cross section AWG, min. | AWG 28 |
| Number of potentials | 1 |
| Colour of operational elements | orange |
| PE function | No |
| Max. voltage (ATEX) | 400 V |
| Height (inches) | 3.327 in |
| Storage temperature | 10 deg C |
| Conductor size Field wiring min. (cURus) | 28 AWG |
| Blade Size | 0.6 mm x 3.5 mm |
| PE connection | No |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 sq mm |
| Pollution severity | 3 |
| Current (ATEX) | 20 A |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 sq mm |
| Stripping length | 10 mm |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Voltage size B (CSA) | 300 V |
| Wire cross section max. (CSA) | 12 AWG |
| Type of mounting | TS 35 |
| Wire cross section min. (CSA) | 28 AWG |
| Rated current | 20 A |
| Number of connections | 3 |
| Cross-disconnect | without |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 sq mm |
| Depth (inches) | 1.482 in |
| Certificate No. (ATEX) | TUEV16ATEX7939U |
| Current size C (cURus) | 20 A |
| Installation advice | Rail |
| UL File Number Search | E60693 |
| Certificate No. (cURus) | E60693 |
| Continuous operating temp., min. | -60 deg C |
| Integral test socket | Yes |
| Depth including DIN rail | 38.4 mm |
| Conductor size Factory wiring max. (cURus) | 12 AWG |
| Connection direction | top |
| Rated cross-section | 2.5 mm² |
| Type of connection | PUSH IN |
| Surge voltage category | III |
| End cover plate required | Yes |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Voltage size C (cURus) | 300 V |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Slitting | Pivoting |
| Wire connection cross section AWG, max. | AWG 12 |
| Approvals | CE, CSA, cURus, DNV GL, EAC, IECEXTUR, TUEVNATEX |
| Certificate No. (CSA) | 200,039 to 70,089,609 |
| Conductor size Field wiring max. (cURus) | 12 AWG |
| Colour | orange |
| Current size D (CSA) | 5 A |
| Twin wire-end ferrules, max. | 0.75 sq mm |
| Open sides | right |
| Rated impulse withstand voltage | 6 kV |
| Current (IECEX) | 20 A |
| Number of Levels | 1 |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Continuous operating temp., max. | 130 deg C |
| Wire cross section max. (IECEX) | 2.5 sq mm |
| Number of clamping points per level | 3 |
| Current size C (CSA) | 20 A |
| Voltage size D (CSA) | 600 V |
| Clamping range, max. | 2.5 sq mm |
| Current size B (cURus) | 20 A |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Connection cross-section, stranded, max. | 2.5 sq mm |
| Rail | TS 35 |
| Wire cross section max. (ATEX) | 2.5 sq mm |
| Max. voltage (IECEX) | 400 V |
| Conductor size Factory wiring min. (cURus) | 28 AWG |
| Current at maximum wires | 20 A |
| Voltage size B (cURus) | 300 V |
| Width (inches) | 0.201 in |
| Gauge to IEC 60947-1 | A3 |
| Wire connection cross section, finely stranded, max. | 2.5 sq mm |
| Storage temperature, min. | 10 °C |
| Rated voltage | 500 V |
| UL 94 flammability rating | V-0 |
| Type of fixing | Snap-on |
| Storage temperature, max. | 40 deg C |
| Wire connection cross-section, solid core, max. | 2.5 sq mm |
| Marking EN 60079-7 | Ex ec II C Gc |
| Package Quantity | 1 |
