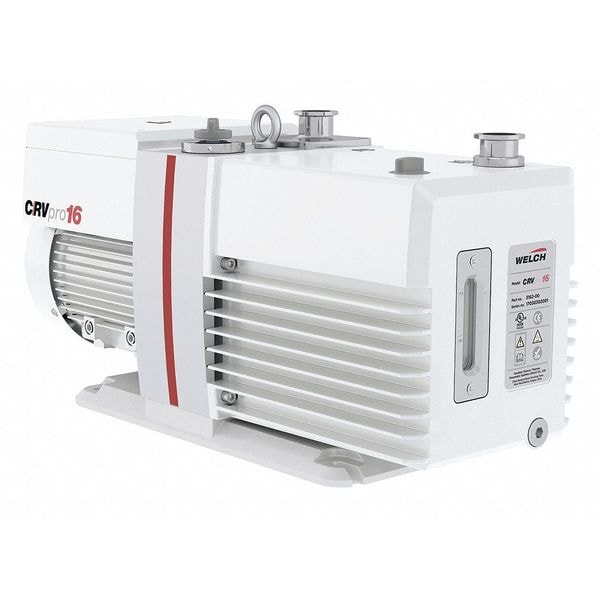

Vacuum Pump, 1 1/10 hp, 1 Phase, 115V AC
| Item | Vacuum Pump |
|---|---|
| HP | 55/64 hp |
| Voltage | 115V AC |
| Phase | 1 |
| Weight | 81.6 lb |
| Overall Length | 22.4 in |
| Inlet Size | 3/4 in NPT |
| Full Load Amps | 8 |
| RPM | 1,740 |
| Overall Height | 11.4 in |
| Free Air CFM @ 0 PSI | 12.4 |
| Overall Width | 11.4 in |
| Outlet Size | 3/4 in NPT |
| Free Air CFM @ 0 In. Hg | 0.37 |
| Hz | 60 |
| Design | Lubricated |
| Max. Vacuum | 29.9 inHg |
| Maximum Vacuum | 29.9 inHg |
| Output Power | 1.1 hp |
| Free Air Flow Rate | 0.37 cfm |
| Current Rating | 8.0 A |
| Maximum Speed | 1,750 rpm |
| Outlet Type | NPT |
| Wattage | 0.85 kW |
| Sound Level | 55 dB |
| Inlet Type | NPT |
| Bearing Type | Force Fed Lubricated Sliding Bearings |
| Frequency | 60 Hz |
| Power Source | Electric |
| Pump Oil Capacity | 2.4 L |
| Alternate Part Number | Not Applicable |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
