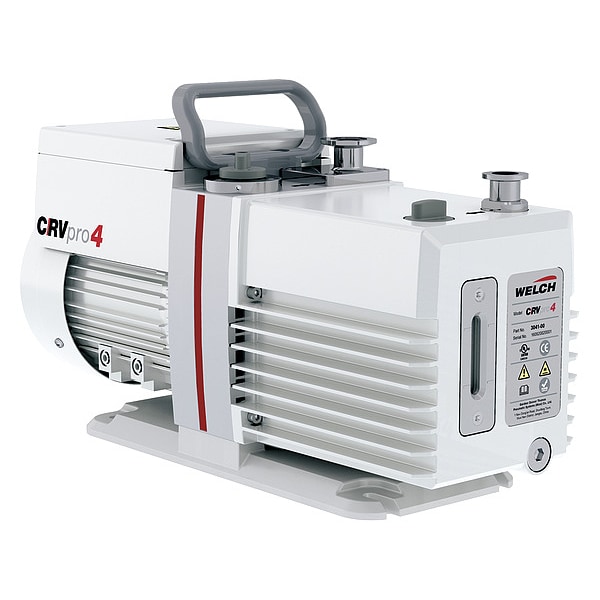

Vacuum Pump, 1/2 hp, 1 Phase, 115V AC
| Item | Vacuum Pump |
|---|---|
| HP | 13/32 hp |
| Voltage | 115V AC |
| Phase | 1 |
| Weight | 46.3 lb |
| Overall Length | 18.2 in |
| Full Load Amps | 5.3 |
| Outlet Size | 5/8 in NPT |
| Max. Vacuum | 29.9 inHg |
| RPM | 1,740 |
| Free Air CFM @ 0 In. Hg | 0.37 |
| Hz | 60 |
| Free Air CFM @ 0 PSI | 2.79 |
| Overall Height | 9.2 in |
| Overall Width | 6.1 in |
| Design | Oil-less |
| Inlet Size | 5/8 in NPT |
| Pump Oil Capacity | 1.15 L |
| Bearing Type | Force Fed Lubricated Sliding Bearings |
| Current Rating | 5.3 A |
| Free Air Flow Rate | 0.37 cfm |
| Maximum Vacuum | 29.9 inHg |
| Power Source | Electric |
| Inlet Type | NPT |
| Frequency | 60 Hz |
| Wattage | 0.4 kW |
| Output Power | 0.5 hp |
| Maximum Speed | 1,740 rpm |
| Sound Level | 50 dB |
| Outlet Type | NPT |
| Alternate Part Number | Not Applicable |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
