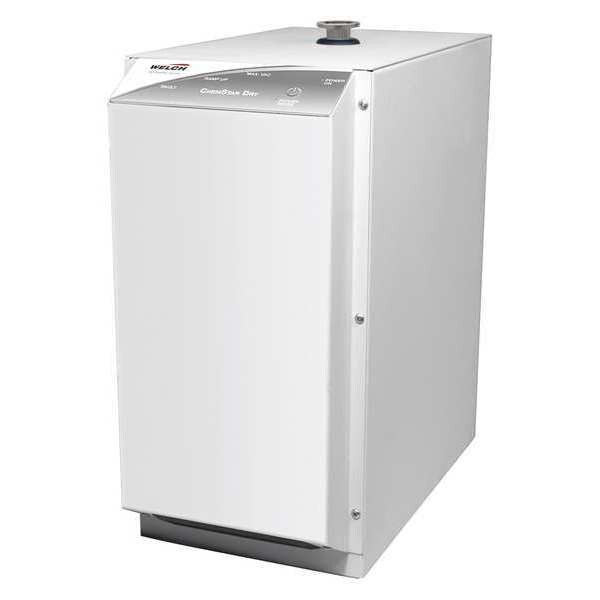

Vacuum Pump, 1/2 HP, 1.2 cfm, 115V, 3/8 in.
| Item | Vacuum Pump |
|---|---|
| HP | 1/2 hp |
| Voltage | 115V AC |
| Phase | 1 |
| Weight | 50 lb |
| Amps AC | 3 |
| Displacement | 1.2 cfm |
| End Vacuum | 0.05 torr |
| Max. dBA | 55 |
| NPT Inlet | 3/8 in |
| Overall Length | 18 in |
| Application | Centrifugal Concentrators, For Schlenk Line Drying Manifolds, Freeze Dryers Up to 6L, Many Other Deep Vacuum Applications, Vacuum Ovens |
| Overall Width | 9 in |
| Hz | 60 |
| Overall Height | 18 in |
| Outlet Size | 1/4 in NW25 |
| Valve Type | Gas Ballast |
| Runs Dry | Yes |
| Maximum Vacuum | 0.07 mbar |
| Outlet Type | NW25 |
| Current Rating | 3.0 A |
| Maximum Discharge Pressure | 0 mbar |
| Frequency | 50/60 Hz |
| Minimum Operating Temperature | 50 deg F |
| Inlet Type | NPT |
| Maximum Operating Pressure | 0 psi |
| Fluid Compatibility | Oil Less |
| Sound Level | 57 dB |
| Maximum Operating Temperature | 104 deg F |
| Lead-Free | No |
| Inlet Size | 3/8 in NPT |
| Maximum Flow Rate | 5.3 cfm |
| Output Power | 0.5 hp |
| Pump Type | Rotary Vane Vacuum |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
