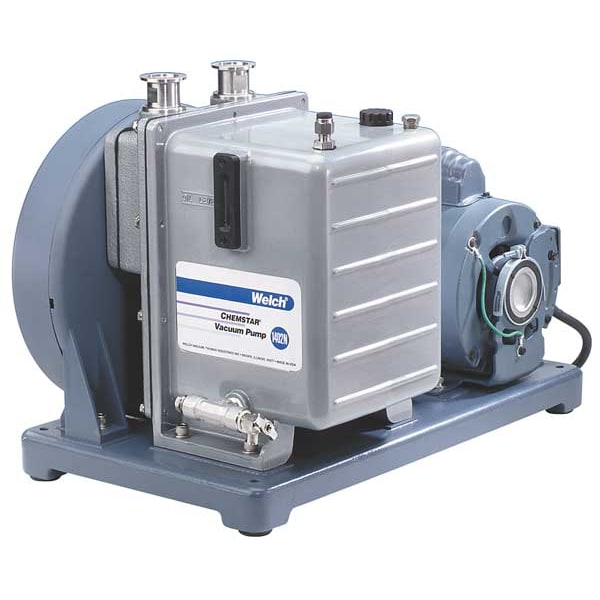

Vacuum Pump, 1/3 HP, 29.90 In. Hg, 0.9 cfm
| Item | Vacuum Pump |
|---|---|
| HP | 1/3 hp |
| Voltage | 115V AC |
| Phase | 1 |
| Weight | 58 lb |
| Amps AC | 5.6 |
| Displacement | 0.9 cfm |
| End Vacuum | 29.9 in Hg |
| Max. dBA | 60 |
| NPT Inlet | 3/4 in |
| Overall Length | 17.81 in |
| Ballast | Yes |
| Hz | 60 |
| Outlet Size | 7/16 in (F) |
| Motor Type | ODP |
| Filter | No |
| Tube Inside Dia. | 7/16 in |
| Finish | Paint |
| Includes | Centering Ring Assembly, Conduit Wiring, Hinged Clamp, Hose Adapter, Synthetic Oil |
| Ultimate Pressure Torr | 1 x 10-4 |
| Oil Capacity | 19.8 fl oz |
| Overall Width | 9 in |
| Valve Type | Bleed |
| Intake Male SAE Flare | ISO - NW 16 |
| Application | Epoxies, Industrial Degassing of Elastomers |
| Overall Height | 12.62 in |
| RPM | 580 RPM |
| Pump Type | Rotary Vane Vacuum |
| Runs Dry | No |
| Outlet Hose/Tube ID | 7/16 in |
| Maximum Operating Pressure | 0 psi |
| Enclosure Type | Open Dripproof |
| Current Rating | 5.6 A |
| Outlet Gender | F |
| Inlet Gender | F |
| Maximum Flow Rate | 0.9 cfm |
| Sound Level | 60 dBA |
| Output Power | 0.33 hp |
| Frequency | 50 Hz |
| Maximum Speed | 580 RPM |
| Inlet Type | NPT |
| Maximum Vacuum | 0.0001 Torr |
| Fluid Compatibility | Oil |
| Maximum Discharge Pressure | 0 mbar |
| Inlet Size | 7/16 in (F)NPT |
| Lead-Free | No |
| Vane Material | Cast Iron |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
