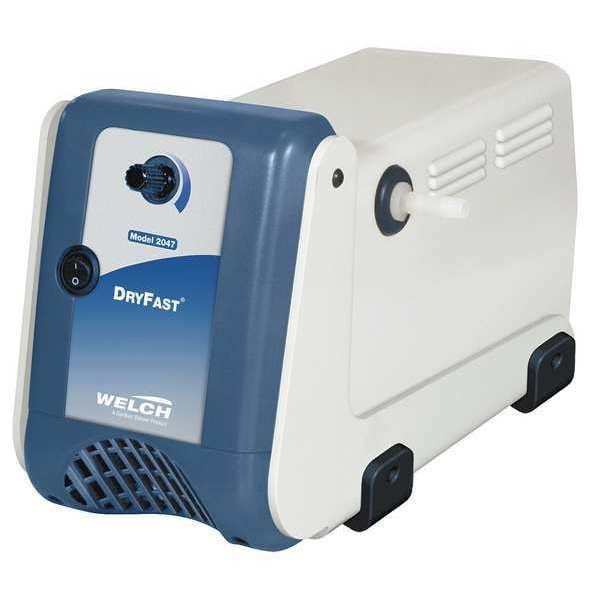

Vacuum Pump, 1/5 HP, 28.50 In. Hg, 1.8 cfm
| Item | Vacuum Pump |
|---|---|
| HP | 1/5 hp |
| Voltage | 115V AC |
| Phase | Single |
| Weight | 21.3 lb |
| Amps AC | 1.3 |
| Displacement | 1.8 cfm |
| End Vacuum | 28.5 in Hg |
| Max. dBA | 56 |
| NPT Inlet | 1/4 in |
| Overall Length | 13-13/16 in |
| Overall Height | 8-13/16 in |
| Motor Type | IP21 |
| Ultimate Pressure Torr | 35 |
| RPM | 1,725 |
| Filter | Yes |
| Outlet Size | 1/4 in |
| Hz | 60 |
| Valve Type | Bleed |
| Tube Inside Dia. | 1/4 in |
| Ballast | Yes |
| Application | Resin Transfer Molding |
| Includes | 115V Plug |
| Finish | Paint |
| Overall Width | 6-13/16 in |
| Current Rating | 1.3 A |
| Maximum Speed | 1,725 rpm |
| Inlet Type | NPT |
| Output Power | 1/5 hp |
| Maximum Vacuum | 28.5 inHg |
| Outlet Type | Hose Barb |
| Vacuum Pressure | 47 mbar |
| Wattage | 150 W |
| Inlet Size | 1/4 in |
| Free Air Displacement | 1.8 cfm |
| Frequency | 60 Hz |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
