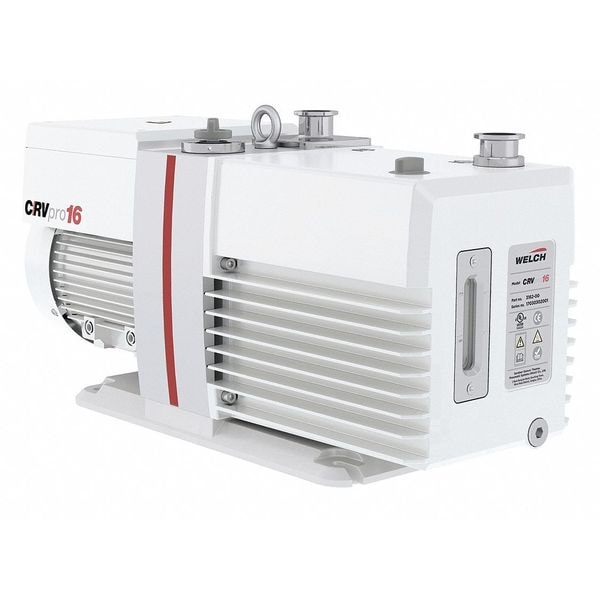

Vacuum Pump, 3/4 hp, 1 Phase, 115V AC
| Item | Vacuum Pump |
|---|---|
| HP | 3/4 hp |
| Voltage | 115V AC |
| Phase | 1 |
| Weight | 81.4 lb |
| Amps AC | 16.0 |
| Displacement | 12.8 cfm |
| End Vacuum | 3 micron |
| Max. dBA | 55 |
| NPT Inlet | NW25 |
| Overall Length | 8.1 in |
| Outlet Size | 1/4 in NW25 |
| Ballast | Gas |
| Finish | Powder Coat |
| Hz | 60 |
| Overall Height | 22.4 in |
| Motor Type | TEFC |
| RPM | 1,725 |
| Oil Capacity | 81 fl oz |
| Valve Type | Gas Ballast |
| Intake Male SAE Flare | 3/4 |
| Application | Commercial, Commercial Chillers, Industrial Refrigeration Service, Moisture From Industrial, Removal of Air |
| Filter | No |
| Includes | 3L Pump Oil, Cord, Plug |
| Overall Width | 11.4 in |
| Ultimate Pressure Torr | 3 x 10-3 |
| Sound Level | 55 dBA |
| Maximum Speed | 1,725 rpm |
| Current Rating | 16.0 A |
| Runs Dry | No |
| Maximum Operating Pressure | 0 psi |
| Inlet Type | NPT |
| Lead-Free | No |
| Maximum Discharge Pressure | 0 mbar |
| Output Power | 0.75 hp |
| Outlet Type | NW25 |
| Inlet Size | 1/4 in NPT |
| Maximum Flow Rate | 12.8 cfm |
| Frequency | 60 Hz |
| Fluid Compatibility | Oil |
| Maximum Vacuum | 0.003 Torr |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
