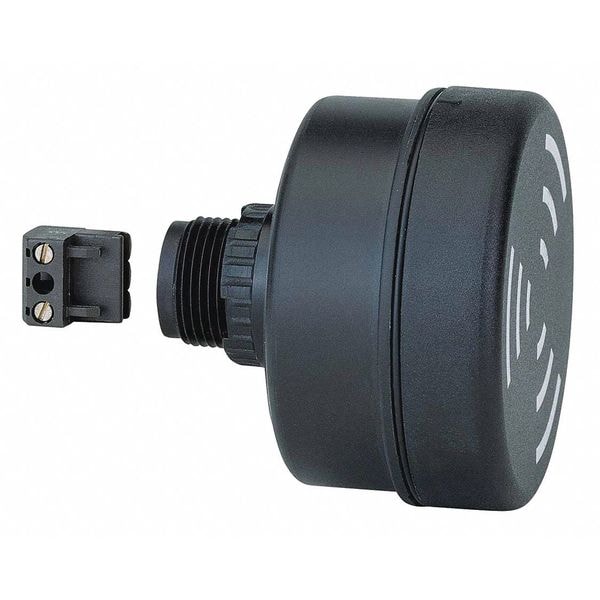

Multi-Tone Sounder, 115VAC, 2-53/64"W, IP65
| Item | Multi-Tone Sounder |
|---|---|
| Housing Material | Polycarbonate, ABS Blend |
| Mounting | Surface, Wall |
| Diameter | 2.8281 in |
| Color | Black |
| Audible Alarm Type | Buzzer |
| Voltage | 115V AC |
| Standards | CE, cULus Listed, EAC, RoHS, UKCA, WEEE |
| Indoor/Outdoor | Indoor, Outdoor |
| Decibels | 100 dB |
| Sound Pattern | Continuous, Pulse |
| Width | 2.8281 in |
| Operating Temp. | -4 Degrees to 122 Degrees F |
| Vibrating | No |
| Features | Specific Sound Output Setting |
| Flashes per Minute | 0 |
| Housing Color | Black |
| Depth | 15/16 in |
| Height | 2.3281 in |
| Visual Indicator Type | No Visual Indicator |
| Power Source | Wire |
| Overall Depth | 59 mm |
| Wattage | 0.73 W |
| Product Type | Tone Generator |
| Material | ABS, Polycarbonate |
| Rating | IP 65 |
| Alarm Volume @ 1 m - Maximum | 100 dBA |
| Vibration | No Vibration |
| Sound Principle | Resonating |
| Volume Selection | Fixed Volume |
| Legend | Not Applicable |
| Alarm Volume @ 1 m - Minimum | 100 dB |
| Alarm Volume @ 10 ft - Minimum | 100 dB |
| Sound Continuity | Continuous, Pulse |
| NEMA Rating | NEMA 4X |
| For Location | Indoor, Outdoor |
| Operating Temperature - Maximum | 50 deg C |
| Number of Sound Patterns | 8 |
| IP Rating | IP65 |
| Sound Style | Tone |
| Alarm Volume @ 10 ft - Maximum | 100 dB |
| Operating Temperature - Minimum | -20 deg C |
| Control Protocol | Direct Wire |
| Overall Width | Not Applicable |
| Connection Type | Screw Terminal |
| Overall Length | Not Applicable |
| Mounting Style | Surface Mount |
| Includes Mounting Hardware | Yes |
| Operating Current | 0.040 A |
| Overall Diameter | 72 mm |
| Operating Voltage | 115V AC |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
