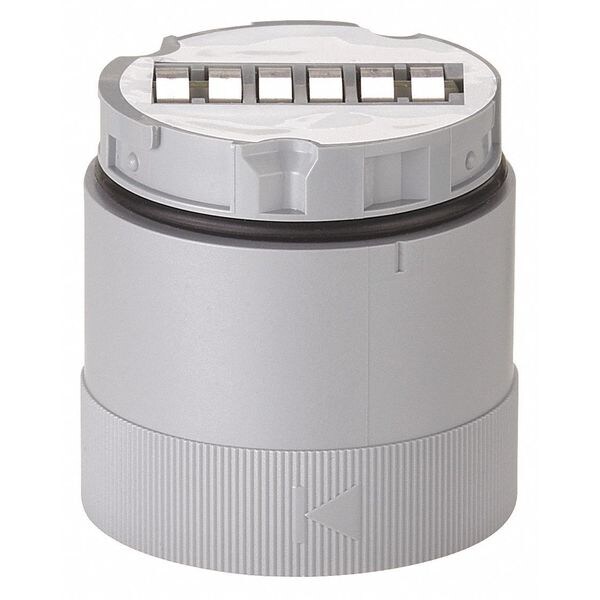

Terminal Element, IP66, 40mm dia, 1-47/64"H
| Item | Terminal Element |
|---|---|
| Standards | CE, cULus Listed, EAC, RoHS, WEEE |
| Diameter | 40 mm |
| Housing Material | Polycarbonate |
| Includes | Not Applicable |
| Height | 1-47/64 in |
| Color | Gray |
| For Use With | KombiSIGN 40 Series Light and Sound Elements |
| Operating Temp. | -22 to 140 deg F |
| Tower Light Mounting Style | Direct |
| Body Color | Gray |
| Length | 1-37/64 in |
| Tower Light Series | KombiSIGN 40 |
| Rating | IP66 |
| Width | 1-37/64 in |
| Mounting | Direct |
| Overall Height | 1-3/4 in |
| Product Type | Tower Light Adapter |
| Operating Voltage | 24V |
| Operating Temperature - Maximum | 60 deg C |
| Operating Temperature - Minimum | -30 deg C |
| Overall Diameter | 1-9/16 in |
| IP Rating | IP66, IP69k |
| Connection Type | Push-In Terminal |
| Housing Color | Gray |
| Overall Width | 1-9/16 in |
| Compatible Series | KombiSIGN 40 |
| Mounting Mechanism | Not Applicable |
| Overall Length | Not Applicable |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
