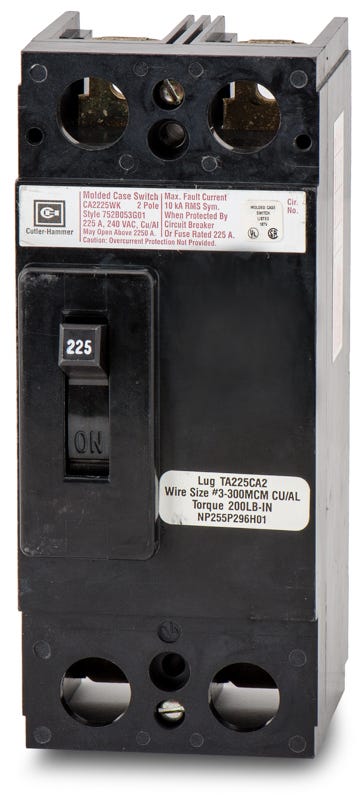

The Westinghouse CA2225WK is a 2 Pole non-automatic molded case circuit breaker with a current rating of 225 Amps and a voltage rating of 240V. It has an interrupting rating of 10kAIC at 240V. The CA2225WK has a bolt-on connection type and includes NA - no overcurrent protection functions.
| Brand | Westinghouse |
|---|---|
| Series | CA |
| Amperage | 225 |
| Voltage | 240V |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Interrupting Rating | 10kAIC at 240V |
| Connection Type | Bolt-On |
| Protection | Non-Automatic |
| Functions | NA - No Overcurrent Protection |
| Mpn | CA2225WK |
