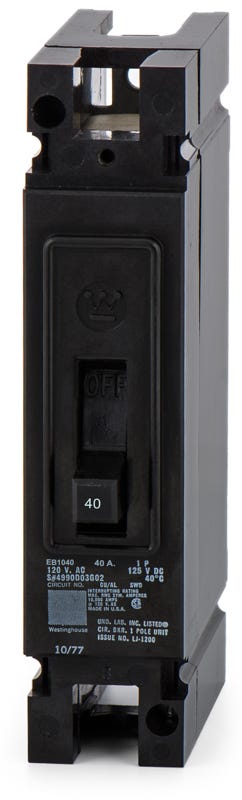

The Westinghouse EB1040 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 40 Amps and a voltage rating of 120V. It has an interrupting rating of 10kAIC at 120V. The EB1040 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Westinghouse |
|---|---|
| Series | EB |
| Amperage | 40 |
| Voltage | 120V |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Contactor Type | Magnetic |
| Interrupting Rating | 10kAIC at 120V |
| Frame Type | EB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Temperature Rating | 40 °C |
| Breaker Feature | Standard Interrupting Capacity |
| Mpn | EB1040-R |
