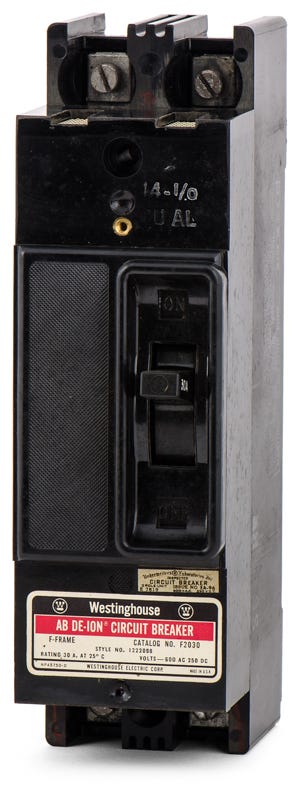

The Westinghouse F2030 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 30 Amps and a voltage rating of 600VAC. It has an interrupting rating of 14kAIC at 480V. The F2030 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Westinghouse |
|---|---|
| Series | F |
| Amperage | 30 |
| Voltage | 600VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Interrupting Rating | 14kAIC at 480V |
| Frame Type | F |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Temperature Rating | 40 °C |
| Mpn | F2030 |
