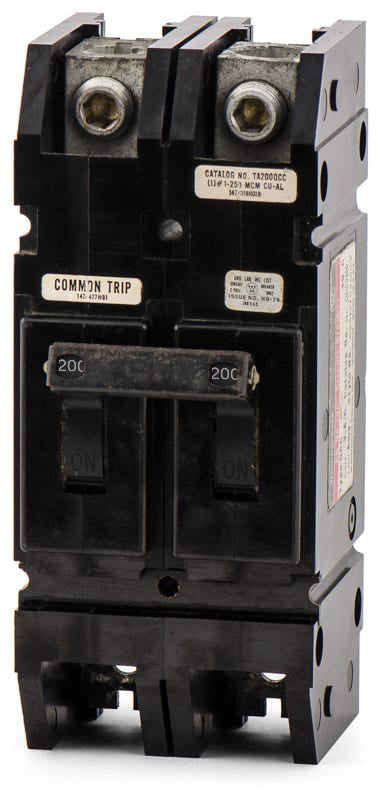

The Westinghouse QCC2200 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 200 Amps and a voltage rating of 240V. It has an interrupting rating of 10kAIC at 240V. The QCC2200 has a feed-thru connection type and includes long time and instantaneous trip functions.
| Brand | Westinghouse |
|---|---|
| Series | QCC |
| Amperage | 200 |
| Voltage | 240 VAC |
| Poles | 2 |
| Phase | 1 |
| Interrupting Rating | 10kA |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous |
| Terminal Connection | Feed-Thru |
| Temperature Rating | 40°C |
| Circuit Breaker Type | Molded Case |
| Voltage Protection Rating | 240V |
