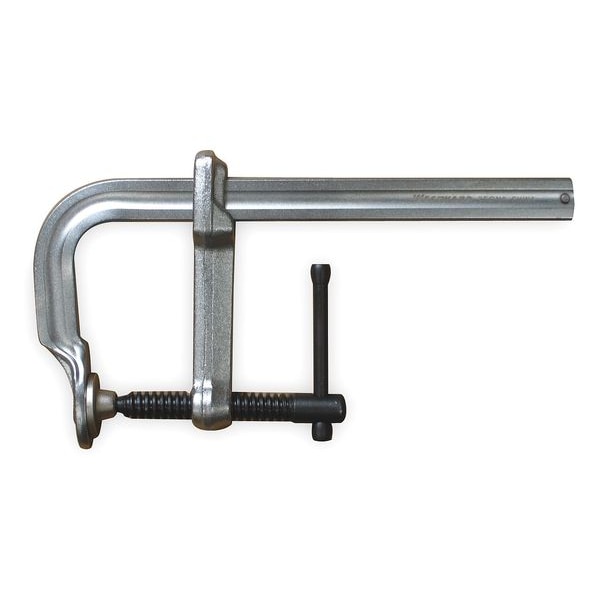

10 in Bar Clamp, Steel Handle and 4 3/4 in Throat Depth
| Handle Material | Steel |
|---|---|
| Throat Depth (In.) | 4-3/4 |
| Nominal Rail Size (In.) | 1-3/16 x 9/16 |
| Bar Material | Carbon Steel |
| Nominal Clamping Pressure | 2,600 lb |
| Pad Type | Smooth, Swivel |
| Item | Bar Clamp |
| Opening (In.) | 10 |
| Spindle Dia. (In.) | 7/8 |
| Max. Jaw Opening (In.) | 10 |
| Type | Economy |
| Spindle Diameter1 | 7/8 in |
| Bar Thickness | 1-3/16 in |
| Handle Style | Sliding T |
| Clamping Capacity1 | 10 in |
| Clamping Force1 | 2,600 lb |
| Jaw Pad Type | Swivel |
| Throat Depth1 | 4-3/4 in |
| Sliding Mechanism | Bar Slide |
| Package Quantity | 1 |
