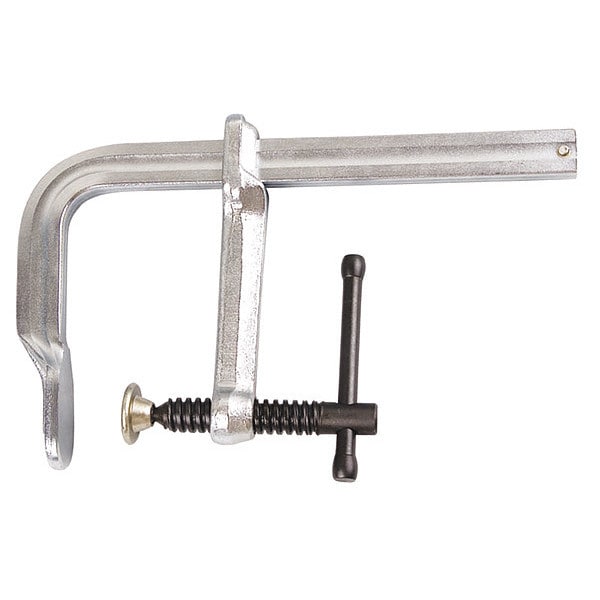

12 in Bar Clamp, Steel Handle and 5 1/2 in Throat Depth
| Handle Material | Steel |
|---|---|
| Throat Depth (In.) | 5-1/2 |
| Application | Woodworking |
| Nominal Rail Size (In.) | 1 x 15/32 |
| Screw Size (In.) | 45/64x3/16 |
| Handle Length (In.) | 4-23/32 |
| Swivel Type | Yes |
| Opening (In.) | 12 |
| Clamp Face (In.) | 0 |
| Item | Bar Clamp |
| Bar Material | Steel |
| Bar Width (In.) | 1 |
| Swivel Pad (In.) | 1-1/4 |
| Load Capacity (Lb.) | 1,300 |
| Type | Medium Duty |
| Spindle Dia. (In.) | 25/64 |
| Max. Jaw Opening (In.) | 12 |
| Pad Type | Smooth |
| Bar Size (In.) | 1x15/32 |
| Clamping Surface D (In.) | 1-23/32 |
| Nominal Clamping Pressure | 1,300 |
| Clamping Surface W (In.) | 1-7/8 |
| Bar Thickness (In.) | 15/32 |
| Handle Style | Sliding T |
| Sliding Mechanism | Bar Slide |
| Bar Thickness | 1/2 in |
| Jaw Pad Width | 1-1/4 in |
| Bar Width | 1 in |
| Clamping Force1 | 1,300 lb |
| Throat Depth1 | 5-1/2 in |
| Spindle Diameter1 | 7/16 in |
| Jaw Pad Type | Swivel |
| Handle Length | 4-3/4 in |
| Clamping Capacity1 | 12 in |
| Package Quantity | 1 |
