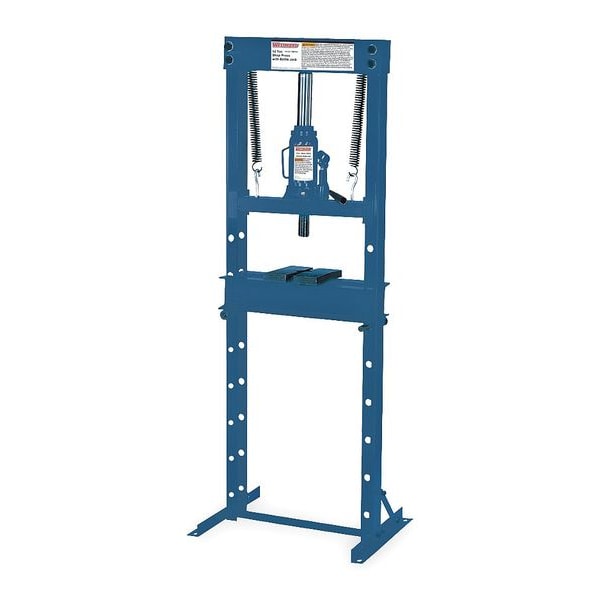

Hydraulic Economy Shop Press, 12 Ton
| Frame Capacity | 12 ton |
|---|---|
| Cylinder Stroke | 6 in |
| Pump Type | Bottle Jack |
| Base Length | 18-1/2 in |
| Base Width | 18-1/2 in |
| Overall Height | 59 in |
| Item | Hydraulic Press |
| Working Width | 7 in |
| Application | 2 5/8 to 34 3/8 in Range of Working Space Allows a Variety of Uses Economically |
| Ram Travel | 6 in |
| Includes | Bottle Jack |
| Pump | B120-10000-000 |
| Cylinder Type | Bottle Jack |
| Reservoir Capacity | 330 mL |
| Screw Travel | 3-1/8 in |
| Max. Ram-to-Table Distance | 34-3/8 in |
| Compatible with Brand | Omega |
| Width Between Table Channels | 7 in |
| Stroke | 6 in |
| Standards | ASME PALD 2009 |
| Table Length | 19-1/2 in |
| Overall Length | 22-3/4 in |
| Overall Width | 18-1/2 in |
| Compatible Mfr. Model Number | 60120 |
| Extension Screw | 3 1/8 in |
| Distance Between Uprights | 16-1/2 in |
| Ram Size | 1-3/4 in |
| Pressure | 9863 psi |
| Adjustable Bed | Yes |
| Color | Blue |
| Material - Machining | Steel |
| Min. Ram-to-Table Distance | 2-5/8 in |
| Package Quantity | 1 |
