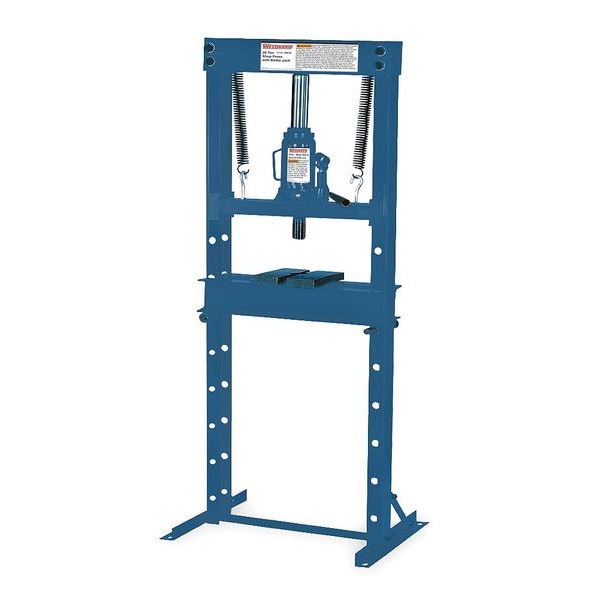

Hydraulic Economy Shop Press, 20 Tons
| Frame Capacity | 20 ton |
|---|---|
| Cylinder Stroke | 6 in |
| Pump Type | Bottle Jack |
| Base Length | 7-3/8 in |
| Base Width | 28 in |
| Overall Height | 64-1/2 in |
| Includes | Bottle Jack |
| Ram Travel | 6 in |
| Item | Hydraulic Press |
| Working Width | 8-5/8 in |
| Pump | B200-10000-000 |
| Cylinder Type | Bottle Jack |
| Reservoir Capacity | 525 mL |
| Overall Width | 28 in |
| Adjustable Bed | Adjustable |
| Material - Machining | Steel |
| Standards | ASME PALD 2009 |
| Screw Travel | 3-1/8 in |
| Compatible Mfr. Model Number | 60200 |
| Min. Ram-to-Table Distance | 2-1/2 in |
| Max. Ram-to-Table Distance | 34-1/4 in |
| Stroke | 6 in |
| Table Length | 23-3/4 in |
| Compatible with Brand | Omega |
| Ram Size | 2-1/4 in |
| Overall Length | 28 in |
| Pressure | 8557 psi |
| Extension Screw | 3 1/8 in |
| Color | Blue |
| Distance Between Uprights | 20 in |
| Width Between Table Channels | 8-5/8 in |
| Operating Pressure | 8,557 psi |
| Phase | Not Applicable |
| Overall Depth | 28 in |
| Voltage | Not Applicable |
| Frame Material | Steel |
| Screw Stroke | 3-1/8 in |
| Base Depth | 7-3/8 in |
| Current | Not Applicable |
| Cylinder Model Number | 60200 |
| Pump Model Number | B200-10000-000 |
| Capacity | 20 ton |
| Ram-to-Table Distance - Minimum | 2-1/2 in |
| Press Bed Depth | 8-5/8 in |
| Press Bed Width | 20 in |
| Horsepower | Not Applicable |
| Ram-to-Table Distance - Maximum | 34-1/4 in |
| Package Quantity | 1 |
