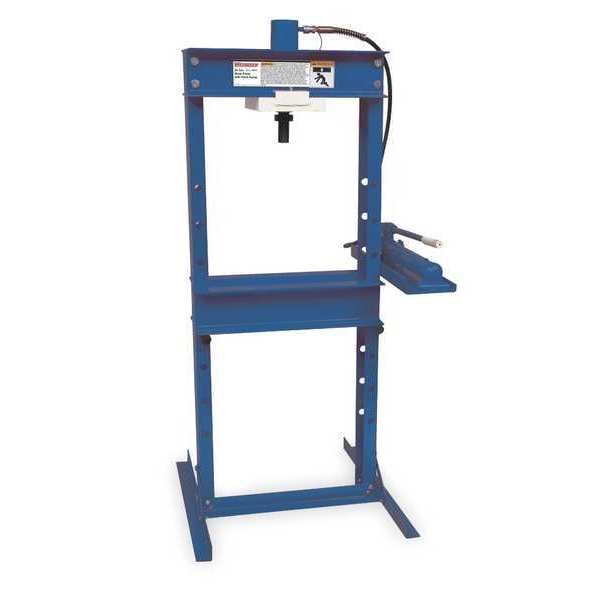

Hydraulic Shop Press, 25 Ton
| Frame Capacity | 25 ton |
|---|---|
| Cylinder Stroke | 6-1/2 in |
| Pump Type | Hand Pump |
| Base Length | 8-1/2 in |
| Base Width | 28 in |
| Overall Height | 59 in |
| Includes | Cylinder, Hose, Hydraulic Hand Pump |
| Working Width | 20 in |
| Ram Travel | 6 in |
| Item | Hydraulic Press |
| Hose Length | 1.88 m |
| Pump | F25Y0S |
| Cylinder Type | Disconnect |
| Reservoir Capacity | 770 mL |
| Compatible with Brand | Omega |
| Material - Machining | Steel |
| Overall Width | 28 in |
| Ram Size | 2-1/4 in |
| Stroke | 6-1/2 in |
| Color | Blue |
| Max. Ram-to-Table Distance | 34-1/4 in |
| Width Between Table Channels | 8-5/8 in |
| Min. Ram-to-Table Distance | 2-1/2 in |
| Compatible Mfr. Model Number | 60253 |
| Distance Between Uprights | 20 in |
| Pressure | 10,153 psi |
| Table Length | 23-3/4 in |
| Standards | ASME PALD 2009 |
| Overall Length | 28 in |
| Adjustable Bed | Adjustable |
| Operating Pressure | 10,153 psi |
| Overall Depth | 28 in |
| Phase | Not Applicable |
| Voltage | Not Applicable |
| Frame Material | Steel |
| Pump Model Number | F25Y0S |
| Motor Speed - Maximum | Not Applicable |
| Base Depth | 8-1/2 in |
| Hydraulic Hose Length | 1.88 m |
| Press Bed Depth | 8-5/8 in |
| Operation | Manual |
| Ram-to-Table Distance - Maximum | 34-1/4 in |
| Current | Not Applicable |
| Press Bed Width | 20 in |
| Capacity | 25 ton |
| Ram-to-Table Distance - Minimum | 2-1/2 in |
| Cylinder Model Number | 60253 |
| Horsepower | Not Applicable |
| Package Quantity | 1 |
