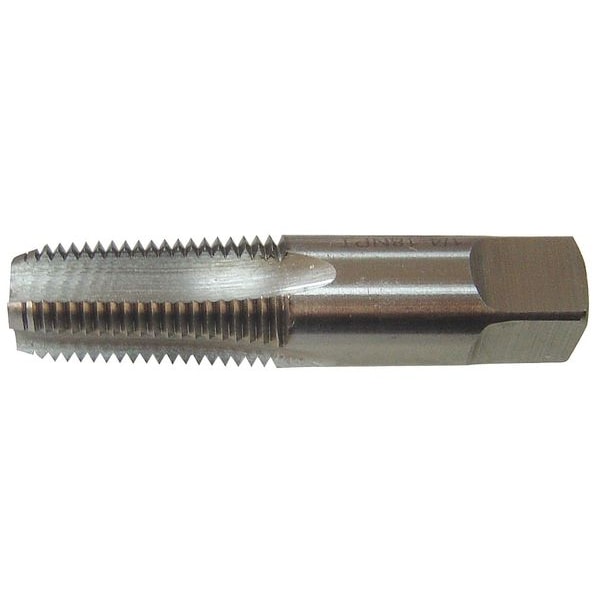

Pipe Tap, 1"-11-1/2, Semi-Bottoming, 5 Flutes, NPTF
| Item | Pipe Tap |
|---|---|
| Tap Thread Size | 1"-11-1/2 |
| Tap Chamfer | Semi-Bottoming |
| Number of Flutes | 5 |
| Tap Thread Type | NPTF |
| Tap Material | High Speed Steel |
| Shank Dia. | 1-1/8 in |
| Standards | ASME |
| Overall Length | 3-3/4 in |
| Tap Style | Pipe |
| Pitch Diameter Limit | Not Rated |
| Tap Grouping | Tap |
| Tap Dimension Type | Pipe |
| Tap Finish | Bright |
| Number of Pieces | 1 |
| Tap Size | 1" |
| Thread Direction | Right Hand |
| Thread Length | 1-3/4 in |
| Series | H311-62355 |
| Size | 1" |
| Features | For Use With a Wide Variety of Materials |
| Cutting Direction - Machining | Right Hand |
| Class of Fit | 3B |
| Drill Bit Size | 1-5/32 in |
| Primary Material Application | All Materials |
| Shank Type - Machining | Straight |
| Material Grade - Machining | M2 |
| Thread Size | 1"-11 1/2 |
| Flute Type | Straight |
| Square Size | 0.843 in |
| Threads per Inch | 11.5 |
| Coolant Fed | Non-Coolant Through |
| Measurement System | Fractional Inch |
| Shank Length | 2 in |
| Thread Standard | NPT |
| 75% Thread Drill Size | 1.1406 in |
| Package Quantity | 1 |
