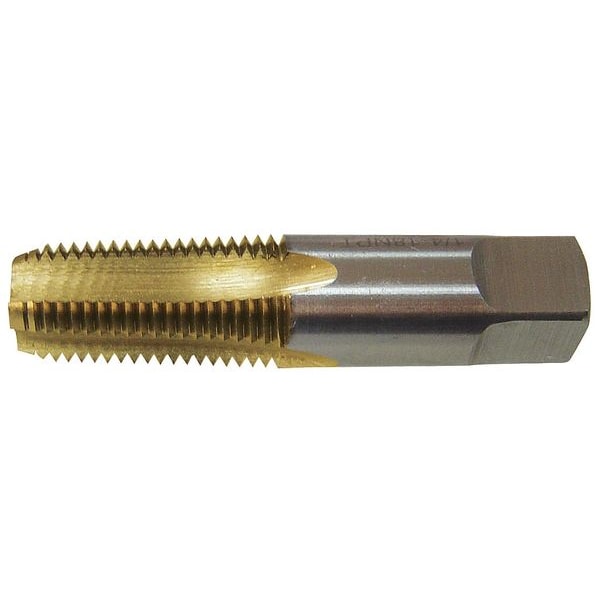

Pipe Tap, 1/4"-18, Semi-Bottoming, 4 Flutes, NPT
| Item | Pipe Tap |
|---|---|
| Tap Thread Size | 1/4"-18 |
| Tap Chamfer | Semi-Bottoming |
| Number of Flutes | 4 |
| Tap Thread Type | NPT |
| Tap Finish | TiN |
| Tap Style | Pipe |
| Tap Grouping | Tap |
| Shank Dia. | 9/16 in |
| Tap Dimension Type | Pipe |
| Thread Direction | Right Hand |
| Thread Length | 1-1/16 in |
| Standards | ASME |
| Overall Length | 2-7/16 in |
| Tap Size | 1/4" |
| Tap Material | High Speed Steel |
| Size | 1/4 |
| Features | For Use With a Wide Variety of Materials |
| Series | T311-60155 |
| Cutting Direction - Machining | Right Hand |
| Coolant Fed | Non-Coolant Through |
| Shank Length | 1-3/8 in |
| Square Size | 0.421 in |
| Primary Material Application | All Materials |
| Threads per Inch | 18 |
| Thread Standard | NPT |
| Material Grade - Machining | M2 |
| Drill Bit Size | 7/16 in |
| Thread Size | 1/4"-18 |
| Measurement System | Fractional Inch |
| Shank Type - Machining | Straight |
| Class of Fit | 3B |
| Flute Type | Straight |
| 75% Thread Drill Size | 7/16 in |
| Pitch Diameter Limit | Not Rated |
| Number of Pieces | 1 |
| Package Quantity | 1 |
