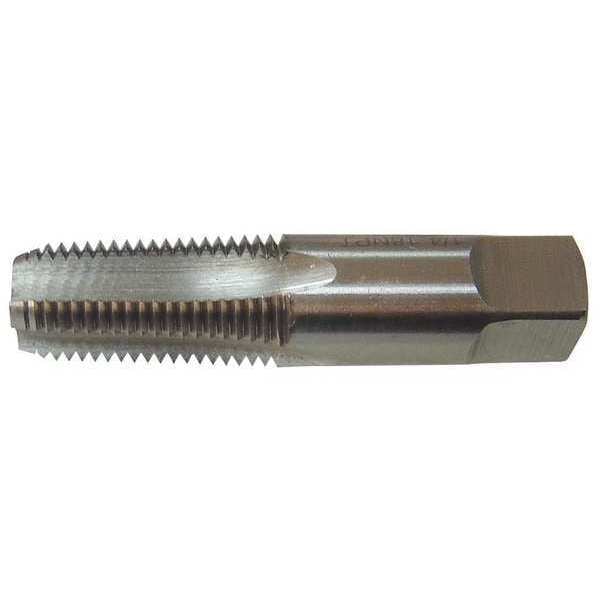

Pipe Tap, 1/8"-27, Semi-Bottoming, 4 Flutes, NPT
| Item | Pipe Tap |
|---|---|
| Tap Thread Size | 1/8"-27 |
| Tap Chamfer | Semi-Bottoming |
| Number of Flutes | 4 |
| Tap Thread Type | NPT |
| Tap Grouping | Tap |
| Pitch Diameter Limit | Not Rated |
| Overall Length | 2-1/8 in |
| Tap Dimension Type | Pipe |
| Standards | ASME |
| Thread Direction | Right Hand |
| Tap Finish | Bright |
| Shank Dia. | 5/16 in |
| Tap Style | Pipe |
| Tap Material | High Speed Steel |
| Tap Size | 1/8" |
| Number of Pieces | 1 |
| Thread Length | 3/4 in |
| Cutting Direction - Machining | Right Hand |
| Closeout | Yes |
| Series | 311-60105 |
| Class of Fit | 3B |
| Thread Size | 1/8"-27 |
| Thread Standard | NPT |
| Shank Type - Machining | Straight |
| Drill Bit Size | R |
| Measurement System | Fractional Inch |
| Features | For Use With a Wide Variety of Materials |
| Material Grade - Machining | M2 |
| Flute Type | Straight |
| Primary Material Application | All Materials |
| Shank Length | 1-3/8 in |
| Coolant Fed | Non-Coolant Through |
| Threads per Inch | 27 |
| Square Size | 0.234 in |
| 75% Thread Drill Size | Q |
| Size | 1/8" |
| Package Quantity | 1 |
