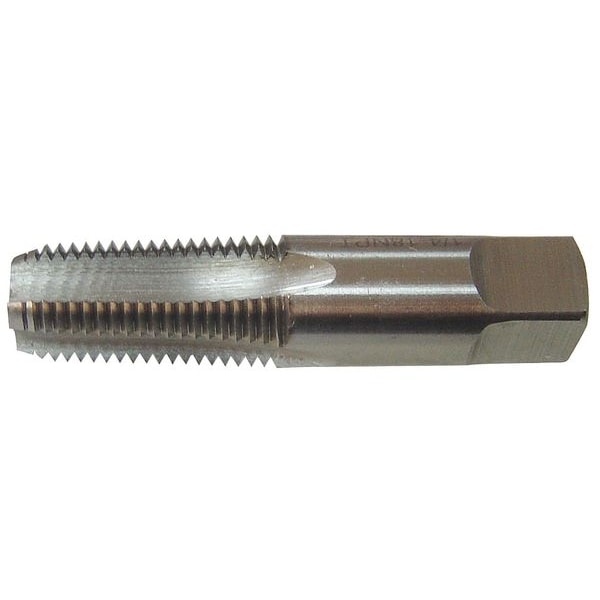

Pipe Tap, 3/4"-14, Semi-Bottoming, 5 Flutes, NPTF
| Item | Pipe Tap |
|---|---|
| Tap Thread Size | 3/4"-14 |
| Tap Chamfer | Semi-Bottoming |
| Number of Flutes | 5 |
| Tap Thread Type | NPTF |
| Tap Size | 3/4" |
| Overall Length | 3-1/4 in |
| Pitch Diameter Limit | Not Rated |
| Tap Style | Pipe |
| Tap Dimension Type | Pipe |
| Tap Finish | Uncoated |
| Thread Length | 29/32 in |
| Standards | ASME |
| Tap Material | High Speed Steel |
| Tap Grouping | Tap |
| Shank Dia. | 29/32 in |
| Number of Pieces | 1 |
| Thread Direction | Right Hand |
| Size | 3/4" |
| Series | H311-62305 |
| Features | For Use With a Wide Variety of Materials |
| Cutting Direction - Machining | Right Hand |
| Class of Fit | 3B |
| Drill Bit Size | 59/64 in |
| Flute Type | Straight |
| Shank Length | 1-7/8 in |
| Shank Type - Machining | Straight |
| Threads per Inch | 14 |
| Primary Material Application | All Materials |
| Square Size | 0.679 in |
| Coolant Fed | Non-Coolant Through |
| Thread Size | 3/4"-14 |
| Measurement System | Fractional Inch |
| Material Grade - Machining | M2 |
| Thread Standard | NPT |
| 75% Thread Drill Size | 0.9063 in |
| Package Quantity | 1 |
