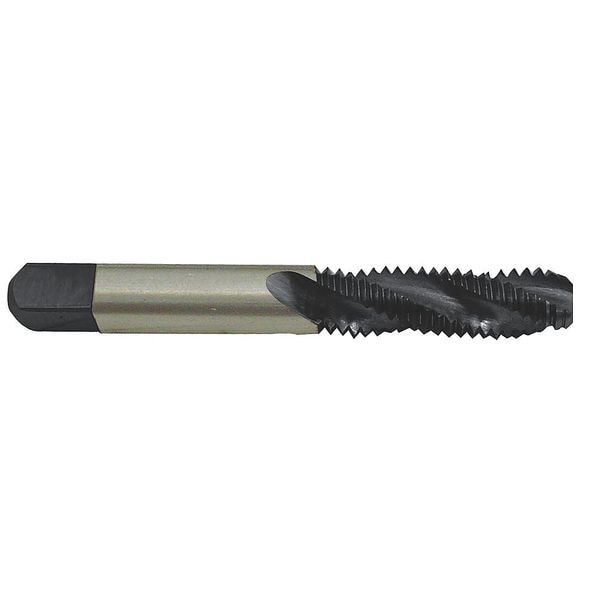

Spiral Flute Tap, Bottoming 3 Flutes
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 2 in |
| Tap Style | Flute |
| Shank Dia. | 0.141 in |
| Tap Chamfer | Bottoming |
| Tap Dimension Type | Inch |
| Tap Material | Cobalt |
| Tap Size | #6 |
| Number of Flutes | 3 |
| Thread Length | 11/16 in |
| Pitch Diameter Limit | H3 |
| Standards | ANSI |
| Number of Pieces | 1 |
| Tap Thread Type | UNC |
| Tap Thread Size | #6-32 |
| Tap Grouping | Tap |
| Thread Direction | Right Hand |
| Tap Finish | Oxide |
| Cutting Direction - Machining | Right Hand |
| Size | #6 |
| Series | M311 |
| Spiral Direction | Right Hand |
| Thread Limit | H3 |
| Measurement System | Pipe |
| Coolant Fed | Non-Coolant Through |
| Shank Type - Machining | Straight |
| Material Grade - Machining | M35 |
| Primary Material Application | All Materials |
| Thread Size | #6-32 |
| Thread Standard | UNC |
| Shank Length | 1-5/16 in |
| Class of Fit | 3 B |
| 75% Thread Drill Size | #36 |
| Shop By | Closeouts |
| Closeout | Yes |
| Package Quantity | 1 |
