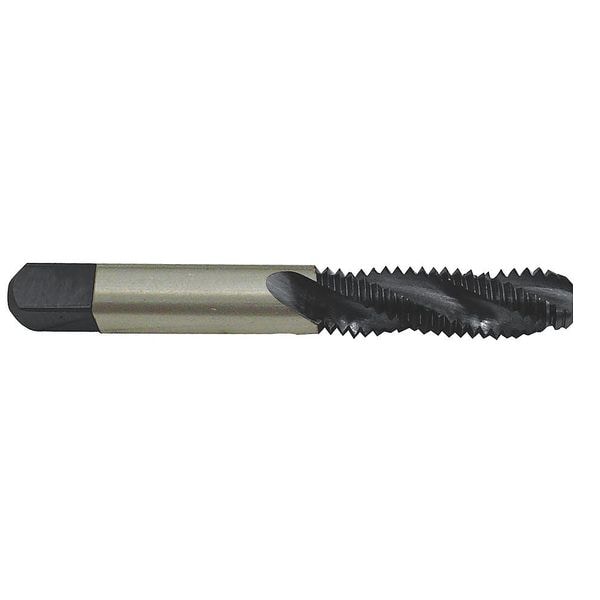

Spiral Flute Tap Bottoming, 3 Flutes
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 3-3/8 in |
| Tap Style | Flute |
| Shank Dia. | 0.367 |
| Tap Chamfer | Bottoming |
| Tap Dimension Type | Inch |
| Tap Material | Cobalt |
| Tap Size | 1/2" |
| Number of Flutes | 3 |
| Thread Length | 1 21/32 |
| Thread Direction | Right Hand |
| Tap Finish | Steam Oxide |
| Tap Grouping | Tap |
| Tap Thread Size | 1/2"-13 |
| Standards | ASME |
| Tap Thread Type | UNC |
| Cutting Direction - Machining | Right Hand |
| Series | M311 |
| Spiral Direction | Right Hand |
| Measurement System | Fractional Inch |
| Threads per Inch | 13 |
| Class of Fit | 3 B |
| Primary Material Application | All Materials |
| Thread Size | 1/2"-13 |
| Shank Length | 1-23/32 in |
| Material Grade - Machining | M35 |
| Thread Limit | H3 |
| Shank Type - Machining | Straight |
| Thread Standard | UNC |
| Coolant Fed | Non-Coolant Through |
| 75% Thread Drill Size | 0.4219 |
| Size | 1/2 |
| Number of Pieces | 1 |
| Closeout | Yes |
| Pitch Diameter Limit | H3 |
| Package Quantity | 1 |
