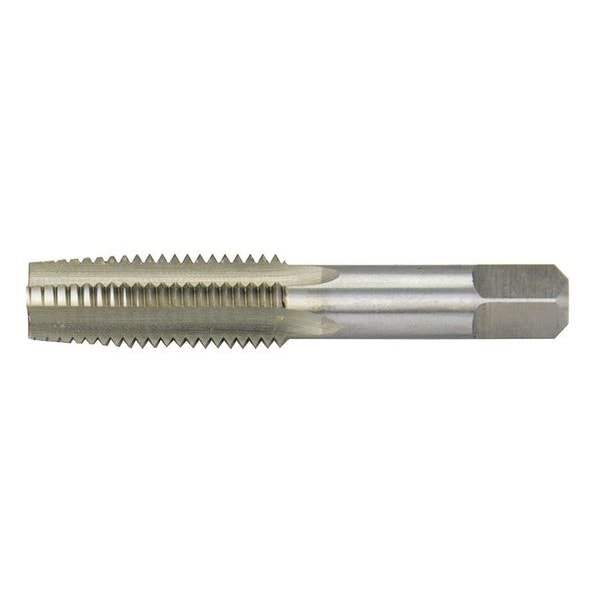

Straight Flute Hand Tap, Bottoming, 4 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 0.318 in |
| Tap Material | High Speed Steel |
| Tap Chamfer | Bottoming |
| Tap Size | 5/16" |
| Tap Style | Straight Flute |
| Tap Dimension Type | Inch |
| Number of Flutes | 4 |
| Overall Length | 2-23/32 in |
| Thread Direction | Right Hand |
| Standards | ANSI |
| Thread Length | 1-1/8 in |
| Number of Pieces | 1 |
| Tap Thread Type | UNC |
| Tap Grouping | Tap |
| Pitch Diameter Limit | H5 |
| Tap Finish | Bright |
| Tap Thread Size | 5/16"-18 |
| Cutting Direction - Machining | Right Hand |
| Size | 5/16" |
| Series | 440-3158 |
| Drill Bit Size | F |
| Shank Type - Machining | Straight |
| Material Grade - Machining | M2 |
| Square Size | 0.238 in |
| Thread Limit | H5 |
| Primary Material Application | All Materials |
| Thread Standard | UNC |
| Thread Size | 5/16"-18 |
| Coolant Fed | Non-Coolant Through |
| Measurement System | Fractional Inch |
| Threads per Inch | 18 |
| Package Quantity | 1 |
