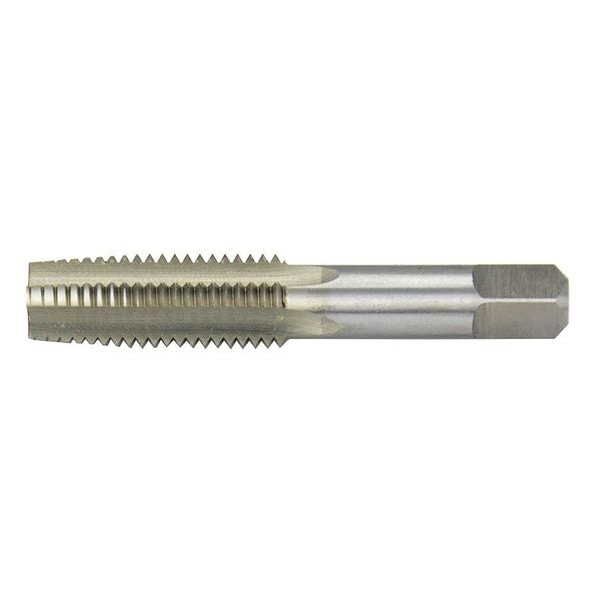

Straight Flute Hand Tap Bottoming, 4 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 0.367 in |
| Tap Material | High Speed Steel |
| Tap Chamfer | Bottoming |
| Tap Size | 1/2" |
| Tap Style | Straight Flute |
| Tap Dimension Type | Inch |
| Number of Flutes | 4 |
| Overall Length | 3-3/8 in |
| Thread Direction | Right Hand |
| Pitch Diameter Limit | H5 |
| Tap Grouping | Tap |
| Tap Thread Type | UNC |
| Tap Thread Size | 1/2"-13 |
| Number of Pieces | 1 |
| Thread Length | 1-21/32 in |
| Standards | ANSI |
| Tap Finish | Bright |
| Cutting Direction - Machining | Right Hand |
| Size | 1/2" |
| Series | 440-3272 |
| Thread Limit | H5 |
| Shank Type - Machining | Straight |
| Threads per Inch | 13 |
| Primary Material Application | All Materials |
| Measurement System | Fractional Inch |
| Material Grade - Machining | M2 |
| Coolant Fed | Non-Coolant Through |
| Thread Standard | UNC |
| Thread Size | 1/2"-13 |
| Drill Bit Size | 27/64 in |
| Square Size | 0.275 in |
| Package Quantity | 1 |
