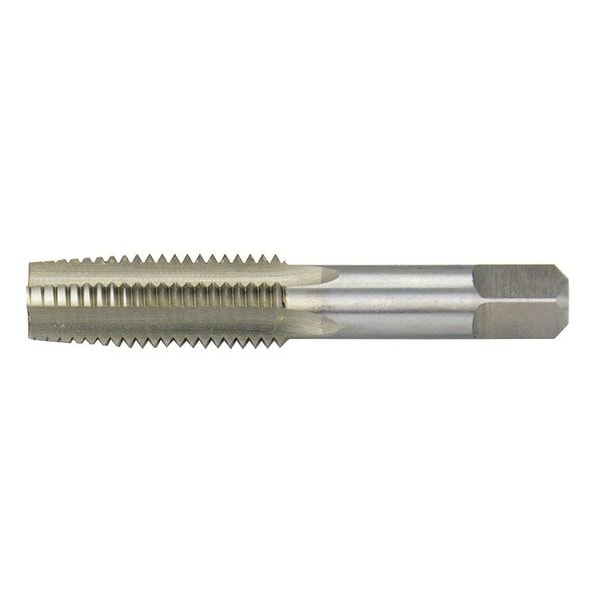

Straight Flute Hand Tap, Bottoming 4 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 6.48 mm |
| Tap Material | High Speed Steel |
| Tap Chamfer | Bottoming |
| Tap Size | M6 |
| Tap Style | Straight Flute |
| Tap Dimension Type | Metric |
| Number of Flutes | 4 |
| Overall Length | 64 mm |
| Thread Direction | Right Hand |
| Tap Thread Type | Metric Coarse |
| Standards | ANSI |
| Tap Thread Size | M6-1.00 |
| Thread Length | 25 mm |
| Tap Grouping | Tap |
| Tap Finish | Bright |
| Pitch Diameter Limit | D5 |
| Number of Pieces | 1 |
| Cutting Direction - Machining | Right Hand |
| Series | 311-4203 |
| Size | M6 |
| Material Grade - Machining | M2 |
| Square Size | 0.191 in |
| Thread Limit | D5 |
| Thread Standard | Metric Coarse |
| Thread Pitch | 1 mm |
| Shank Type - Machining | Straight |
| Primary Material Application | All Materials |
| Thread Size | M6x1 |
| Measurement System | Metric |
| Coolant Fed | Non-Coolant Through |
| Drill Bit Size | #10 |
| Package Quantity | 1 |
