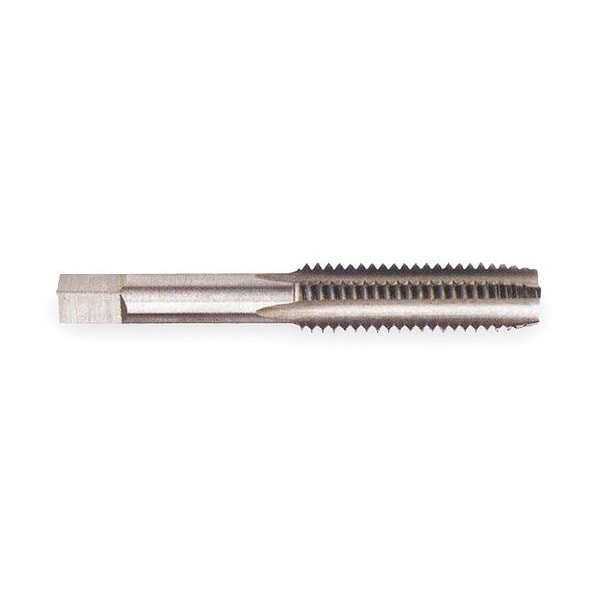

Straight Flute Hand Tap, Plug 4 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 0.59 in |
| Tap Material | Carbon Steel |
| Tap Chamfer | Plug |
| Tap Size | 3/4" |
| Tap Style | Straight Flute |
| Tap Dimension Type | Inch |
| Number of Flutes | 4 |
| Overall Length | 4-1/4 in |
| Thread Direction | Right Hand |
| Pitch Diameter Limit | Not Rated |
| Thread Length | 2 in |
| Tap Grouping | Tap |
| Tap Finish | Bright |
| Number of Pieces | 1 |
| Tap Thread Type | UNC |
| Tap Thread Size | 3/4"-10 |
| Standards | ASME |
| Cutting Direction - Machining | Right Hand |
| Series | 312-2295 |
| Size | 3/4" |
| Primary Material Application | All Materials |
| Measurement System | Fractional Inch |
| Threads per Inch | 10 |
| Drill Bit Size | 21/32 in |
| Square Size | 0.442 in |
| Coolant Fed | Non-Coolant Through |
| Thread Standard | UNC |
| Thread Size | 3/4"-10 |
| Shank Type - Machining | Straight |
| Package Quantity | 1 |
