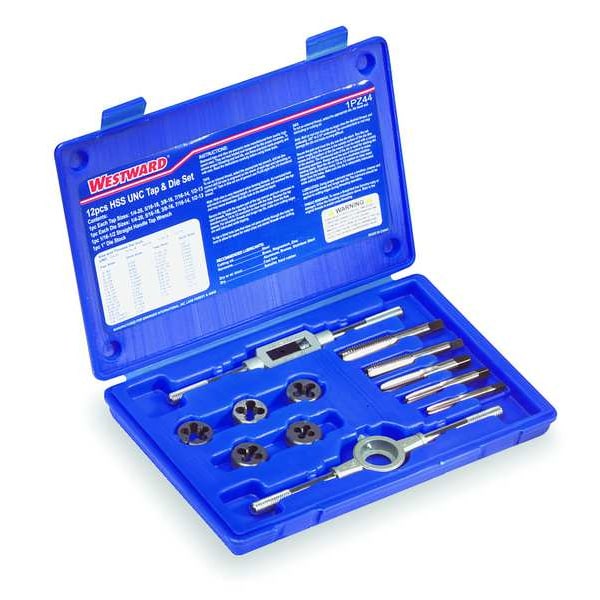

Tap/Die Set, 12 Pieces
| Item | Tap and Die Set |
|---|---|
| Tap Material | High Speed Steel |
| Tap Finish | Bright (Uncoated) |
| Thread Direction | Right Hand |
| Number of Pieces | 12 |
| Includes | Straight Handle Tap Wrench, Die Stock, Plastic Case |
| Tap Chamfer | Plug |
| Die Shape | Round Fixed |
| Die Type | Solid |
| Thread Type | UNC |
| Cutting Sizes | 5 |
| Standards | ANSI-B94-1987 |
| Tap Dimension Type | Inch |
| SAE or Metric | SAE |
| Size Range | 1/4" to 1/2" |
| Die Material | High Speed Steel |
| Sizes Included | 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13 |
| Material | High Speed Steel |
| Size/Range | 1/4 to 1/2" |
| Features | Fully-Ground Tooling in a Custom-Fit |
| Material - Machining | High Speed Steel |
| Thread Standard | UNC |
| Tap Sizes Included | 1/2"-13, 1/4"-20, 3/8"-16, 5/16"-18, 7/16"-14 |
| Measurement System | Fractional Inch |
| Max. Die Thread Size | 1/2"-13 |
| Max. Tap Thread Size | 1/2"-13 |
| Min. Tap Thread Size | 1/4"-20 |
| Thread Sizes Included | 1/2"-13, 1/4"-20, 3/8"-16, 5/16"-18, 7/16"-14 |
| Die Thread Sizes Included | 1/2"-13, 1/4"-20, 3/8"-16, 5/16"-18, 7/16"-14 |
| Tap Overall Length | 2.5 in, 2.71875 in, 2.9375 in, 3.15625 in, 3.375 in |
| Die Finish | Bright (Uncoated) |
| Number Of Taps | 5 |
| Finish - Machining | Bright |
| Tap Material Grade | M2 |
| Dimensions Standard | ASME B94.9 |
| Tap Series | 440 |
| Case Type | Plastic Case |
| Spiral Direction | Right Hand |
| Thread Limit | H4, H5 |
| 75% Thread Drill Size | 27/64 in, 5/16 in, #8, F, U |
| Primary Material Application ISO Code | 10.1, 4.1, 6.1, 7.1, 8.1, 9.1 |
| Drill Bit Size | 27/64", 5/16", #8, F, U |
| Secondary Material Application ISO Code | 1.1, 1.2, 2.1, 21, 22, 23, 24, 25, 26, 31, 32, 33, 34, 35, 36 |
| Class of Fit | 2 B |
| Coolant Fed | No |
| Die Material Grade | M2 |
| Threads per Inch | 13, 14, 16, 18, 20 |
| Tap Type | Hand |
| Tap Shank Standard | ANSI |
| Primary Material Application | Alloy Steel, Austenitic Stainless Steel, Magnetic Soft Steel, Plain Carbon Steel |
| Die Series | 314 |
| Secondary Material Application | Alloyed Aluminum, Alloyed Nickel, Alloyed Titanium |
| Type | Fractional |
| Package Quantity | 1 |
