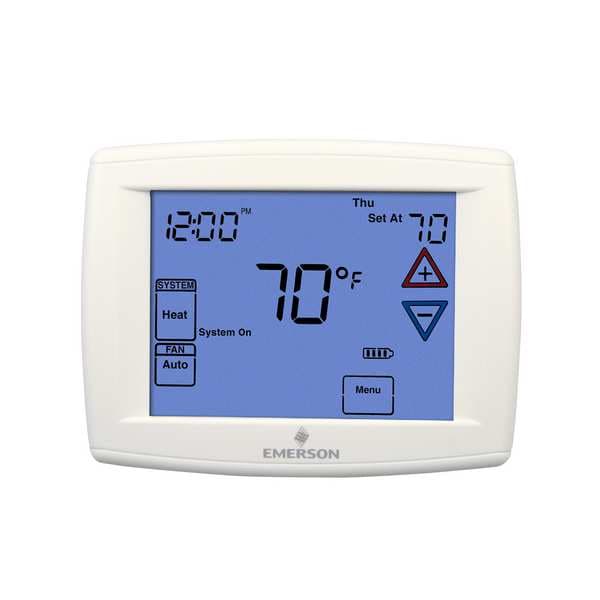

Blue Series 12 Touchscreen Thermostats, 7, 5-1-1 Programs, 3 H, 2 C, 24VAC
| Item | Blue Series 12 Touchscreen Thermostats |
|---|---|
| Voltage | 24VAC |
| Stages Heat | 3 |
| Mounting Type | Horizontal |
| Color | White |
| Control Range | 45 to 99 deg F |
| System Switching | Auto-Heat-Cool-Off-Emergency |
| Stages Cool | 2 |
| Height | 4-5/8 in |
| Width | 5-15/16 in |
| Dual Transformer Compatible | Yes |
| Power Method | Battery, Hardwired Stealing, Power |
| 750mV Compatible | Yes |
| Programs per Week | 7, 5-1-1 |
| Automatic Changeover | Yes |
| Terminal Designations | RC, RH, C, W/E, W2, Y, Y2, O/B, G, L, 6, +, S, - |
| Includes | 2 AA Batteries |
| Temporary Program Override | Yes |
| WiFi Capability | No |
| Features | Audible Feedback, Selectable High/Low Temp Limits, Key Pad Programming |
| Temporary Temperature Hold | Yes |
| Batteries Included | Yes |
| Programmable Fan | Yes |
| Humidification Control | No |
| For Use With | Heat, Cool, and Heat Pump Systems, (3) Wire Zone Valve |
| Fan Switching | Auto-On-Program-Circulate |
| Footnotes | 1, 2, 3, 4, 6, 8 |
| Display Type | Backlit |
| Key Pad Lockout | Yes |
| Temperature Limiting | Yes |
| Temp. Settings per Day | 0, 2, 4 |
| Battery Backup | Yes |
| Remote Sensing Capability | Yes |
| Low Battery Indicator | Yes |
| Dehumidification Control | No |
| Filter Indicator | No |
| Display Color | Blue |
| Green Environmental Attribute | Thermostat has Programmable Feature to Reduce Energy Consumption |
| Depth | 1-1/4 in |
| Display Size | 12 sq in |
| Mounting | Horizontal |
| Type | Touch Screen Programmable Multi Stage, H/C or HP |
| Control Type | Touch Screen |
| Stages | 2H/2C Conventional, 4H/2C Heat Pump |
| Battery Type | AA Batteries |
| Shape | Rectangle |
| Sensor Location | Remote |
| Mounting Direction | Horizontal |
| Temperature Control Range | 45 to 99 deg F |
| System/Fan Settings | Auto-On, Auto-Cool-Emergency Heat-Off |
| Frequency | 50 Hz, 60 Hz |
| Differential Heat | 0.5 deg F, 1.9 deg F |
| Number of Cooling Stages - Heat Pump System | 2 |
| Number of Cooling Stages - Conventional System | 2 |
| Digit Size | Easy Read |
| Backlit Type | Touch Activated, Continuous with Common Wire |
| Minimum Control Temperature | 45 deg F |
| Minimum Operating Temperature | 32 deg F |
| Temperature Differential | 0.6 Degrees F, 1.2 Degrees F |
| Mounting Direction/Shape | Horizontal |
| Includes Batteries | Yes |
| Backlit Screen | Yes |
| Differential Type | Adjustable |
| Overall Width | 5-13/16 in |
| Number of Zones | 2 |
| Screen Height | 12 in |
| Maximum Operating Temperature | 105 deg F |
| Overall Depth | 1-13/16 in |
| Programming Capability | 5-1-1, 7 Day |
| System Settings | Auto-Cool-Emergency Heat-Off |
| Operating Temperature Range | 32 to 105 deg F |
| Differential Cool | 0.9 deg F, 1.7 deg F |
| Changeover Type | Automatic |
| Includes Positive Off | Yes |
| Application/Stages | Heat and Cool; 2H/2C Conventional, 4H/2C Heat Pump |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Millivolt |
| Operating Humidity Range | 0% to 90% RH |
| Temperature Scale | Fahrenheit, Celsius |
| Housing Color | White |
| Backlit Screen Color | Blue |
| Screen Width | 12 in |
| Maximum Operating Humidity | 90 % |
| Electrical Connection Type | Hardwired |
| Application | Cool, Heat |
| Maximum Control Temperature | 99 deg F |
| Number of Heating Stages - Heat Pump System | 4 |
| Temperature Readout | Yes |
| Filter Change Reminder | Yes |
| Smart Connectivity | No Connectivity |
| Temperature settings per day | 0, 2, 4 |
| Overall Height | 4-9/16 in |
| Contact Rating | 20 to 30V AC |
| Millivolt Compatible | Yes |
| Fan Settings | Auto-On |
| Number of Heating Stages - Conventional System | 2 |
| Thermostat Type | Low Voltage |
| Minimum Operating Humidity | 0 % |
| Country of Origin (subject to change) | Viet Nam |
| Package Quantity | 1 |
