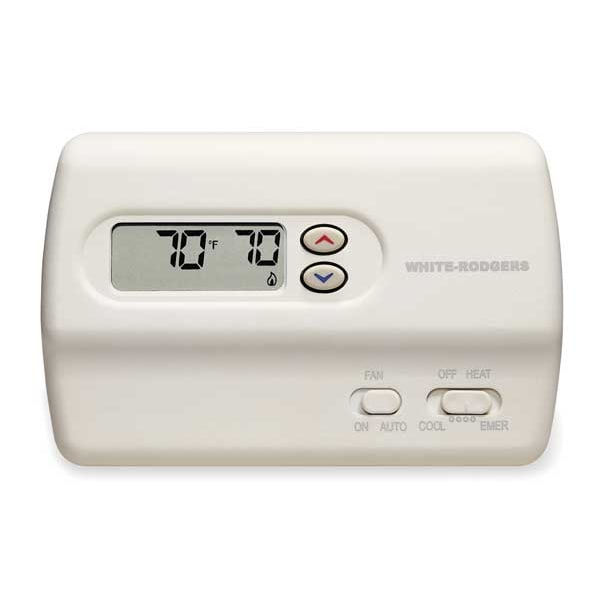

Classic 80 Series Thermostats, 2 H, 1 C, Hardwired, 20/30VAC
| Item | Classic 80 Series Thermostats |
|---|---|
| Voltage | 20/30VAC |
| Stages Heat | 2 |
| Mounting Type | Horizontal |
| Color | White |
| Control Range | 45 to 99 deg F |
| System Switching | Heat-Cool-Off-Emergency |
| Stages Cool | 1 |
| Height | 3-3/4 in |
| Width | 6 in |
| Dual Transformer Compatible | No |
| Power Method | Hardwired |
| 750mV Compatible | No |
| Includes | Lighted Display, Filter Indicator |
| Programmable Fan | No |
| Depth | 1-1/4 in |
| Display | Digital Backlit |
| Humidification Control | No |
| Filter Indicator | Yes |
| Features | Compressor Short Cycle Protection, Batteries not Required, Lighted Display |
| Fan Switching | Auto-on |
| Terminal Designations | R,C,Y,W2,G,O/B,E,L |
| Mounting | Horizontal |
| Temporary Program Override | No |
| Temperature Limiting | No |
| Display Type | Digital |
| Dehumidification Control | No |
| Key Pad Lockout | No |
| Control Type | Slide Switch |
| Type | Digital Nonprogrammable Multi Stage HP |
| Stages | 2H/1C Heat Pump |
| Temperature Scale | Fahrenheit, Celsius |
| Maximum Operating Humidity | 90 % |
| Backlit Type | Continuous with Common Wire, Key Press |
| Millivolt Compatible | Yes |
| Application | Cool, Heat |
| Mounting Direction | Horizontal |
| System/Fan Settings | Auto-On, Cool-Heat-Off |
| Number of Cooling Stages - Conventional System | 0 |
| Housing Color | White |
| Overall Width | 6 in |
| Digit Size | Standard |
| Overall Height | 3-7/8 in |
| Programming Capability | Not Programmable |
| Maximum Operating Temperature | 150 deg F |
| Shape | Rectangle |
| Frequency | 50 Hz, 60 Hz |
| Number of Cooling Stages - Heat Pump System | 1 |
| Thermostat Type | Low Voltage |
| Housing Material | Plastic |
| Fan Settings | Auto-On |
| Temperature Differential | 0.6 Degrees to 1.5 Degrees F |
| Number of Heating Stages - Conventional System | 0 |
| Minimum Control Temperature | 45 deg F |
| Minimum Operating Humidity | 0 % |
| Minimum Operating Temperature | -40 deg F |
| Includes Positive Off | Yes |
| Temperature Control Range | 45 to 99 deg F |
| Mounting Direction/Shape | Horizontal |
| Number of Zones | 1 |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux |
| Differential Type | Adjustable |
| Changeover Type | Manual |
| Filter Change Reminder | Yes |
| Operating Temperature Range | -40 to 150 deg F |
| Number of Heating Stages - Heat Pump System | 2 |
| Maximum Control Temperature | 99 deg F |
| Operating Humidity Range | 0% to 90% |
| Overall Depth | 1-3/16 in |
| Electrical Connection Type | Hardwired |
| Temperature Sensitivity | +/-1 deg F |
| Amperage | 2.5 A |
| System Settings | Cool-Heat-Off |
| Output Signal | Not Applicable |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
