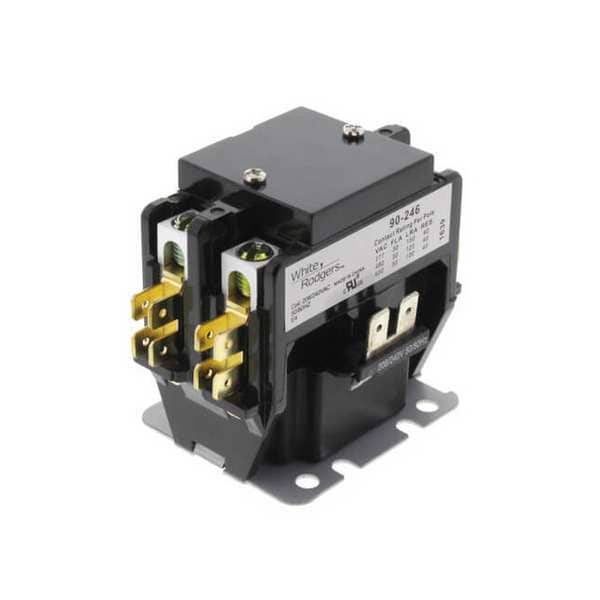

Contactor, 2 Pole, 208/240VAC, 30 Amps
| Item | Definite Purpose Magnetic Contactor |
|---|---|
| Standards | ARI, UL Listed |
| Depth | 3.31 in |
| Reversing | No |
| Hz | 50/60 |
| Width | 2 in |
| Full Load Amps-Resistive | 40 A |
| Enclosure NEMA Rating | No Enclosure |
| Height | 2.45 in |
| Number of Poles | 2 |
| Full Load Amps-Inductive | 30 A |
| Terminal Connection Type | Quick-Disconnect Terminals |
| Includes Shunt | Not Applicable |
| Mounting Style | Universal |
| NEMA Enclosure Material | Not Applicable |
| Overall Width | 2 in |
| Tungsten Lighting Current Rating | Not Applicable |
| Fluorescent Lighting Current Rating | Not Applicable |
| LED Lighting Current Rating | Not Applicable |
| Overall Height | 2-1/2 in |
| Frequency | 50/60 Hz |
| Contactor Style | HVACR Definite Purpose Contactor |
| Mounting Hole Diameter | 0.22 in |
| Overall Depth | 3.38 in |
| NEMA Enclosure Rating | No Enclosure |
| Mounting Hole Distance - Width | 1.63 in |
| Full Load Current - Resistive | 40 A |
| Full Load Current - Inductive | 30 A |
| Minimum Operating Temperature | -40 deg F |
| Reversing Capability | Non-Reversing |
| Maximum Voltage Rating | 600V AC |
| Mounting Hole Distance - Height | 1.63 in |
| Maximum Operating Temperature | 150 deg F |
| Series | 90 Series |
| Frame Size | Not Applicable |
| Coil Voltage | 208/240V AC |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
