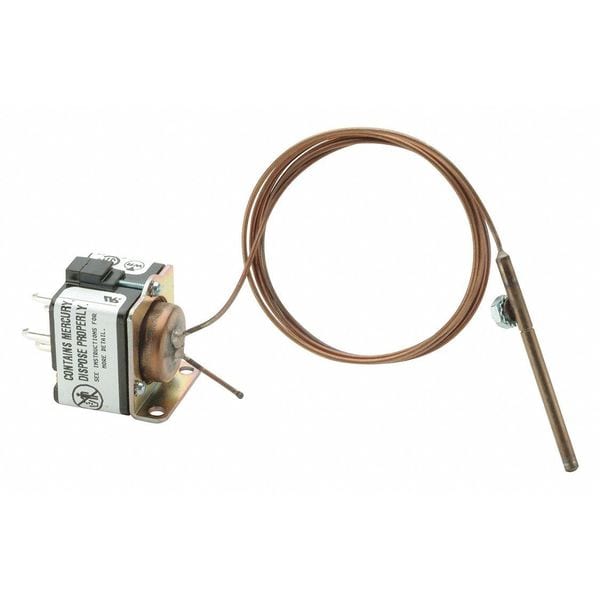

Cycle-Pilot Mercury Flame Sensors, NG, LP or Mixed Gas, 125, Plug-In
| Gas Type | NG, LP or Mixed Gas |
|---|---|
| Item | Cycle-Pilot Mercury Flame Sensors |
| Type | Plug-In |
| Voltage | 125 |
| Package Quantity | 1 |
| Length (In.) | 7-1/2 |
| Tip Style | Sleeve Covered |
| Special Information | Sensor Combines a Rugged Snap-Action SPDT Switch and Powerful Mercury Actuated Thermal Element, The SPDT Switch Can Energize Ignitor Circuit to Relight Pilot (As with Roof Top Units), No Button to Depress Sensors are Recycling Type Which Require Relighting or Possible Restoration of Proper Gas Pressure to Return to Operation |
| Standards | CSA Certified |
| Product Type | Flame Sensor |
| For Fuel Type | Natural Gas, LP |
| Input Voltage | 125V AC |
| Bracket Type | Universal |
| Volt Amp Rating @ 240V AC | 125 VA |
| Compatible Ignition System Type | Hot Surface Ignition |
| Probe Mounting Type | Sleeve Mount |
| Replacement Type | Universal |
| Electrical Connection Type | Plug-In |
| Maximum Rod Temperature | 1,400 deg F |
| Lead Length | 12 in |
| Volt Amp Rating @ 120V AC | 125 VA |
| Probe Length | 1-7/8 in |
| Probe Tip Angle | Not Applicable |
| Volt Amp Rating @ 30V AC | 90 VA |
| Flame Sensor Type | Hot Surface Ignition Flame Sensor |
| Capillary Tube Length | 12 in |
| Overall Length | 7-1/2 in |
| Country of Origin (subject to change) | China |
