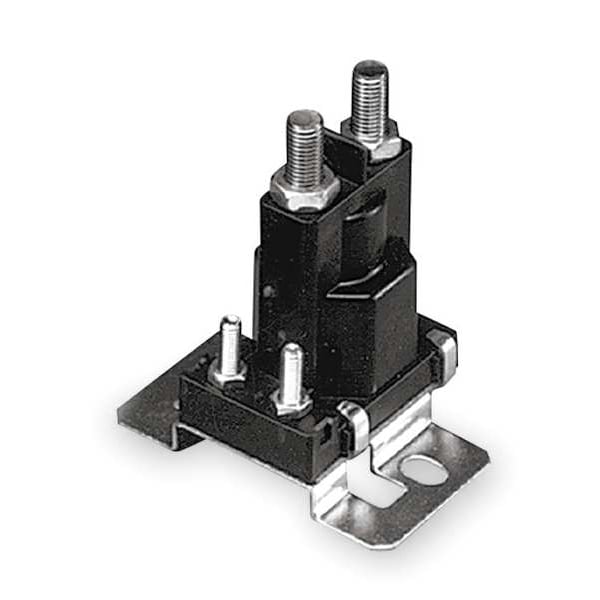

Solenoid de potencia de CC, 12V, 100 amperios.
| Item | DC Power Solenoid |
|---|---|
| Coil Voltage DC | 12 V DC |
| Amps | 100 |
| Contact Form | SPST-NO |
| Duty Cycle | Continuous |
| Coil Termination | #10-32 |
| Contact Material | Silver Alloy |
| Standards | UL 538, File AU2138 |
| Series | 120 |
| Includes | Not Applicable |
| Enclosure | Dust And Water Resistant |
| Mounting Base | Standard Bracket |
| Coil Type | Isolated |
| Contact Termination | 5/16 in-24 Studs |
| Coil Resistance | 16 ohms |
| Height | 3.09 in |
| Temperature Range | -20 to 120°F |
| Width | 2.88 in |
| Length | 2.13 in |
| Contact Rating | 12 A |
| Dielectric Strength | 500 V |
| Coil Voltage | 12 V DC |
| Maximum Operating Temperature | 150 deg F |
| Current Rating | 100 A |
| Power Consumption | 8.1 W |
| Mechanical Operating Durability | 100,000 |
| Weight | 6 oz |
| Resistance Properties | Dust Resistant, Water Resistant |
| Minimum Operating Temperature | -20 deg F |
| Electrical Operating Durability | 50,000 |
| Number of Terminals | 4 |
| Overall Height | 3.09 in |
| Overall Width | 2.88 in |
| Operating Temperature - Minimum | -20 deg F |
| Operating Temperature - Maximum | 150 deg F |
| Overall Length | 2.13 in |
| Package Quantity | 1 |
