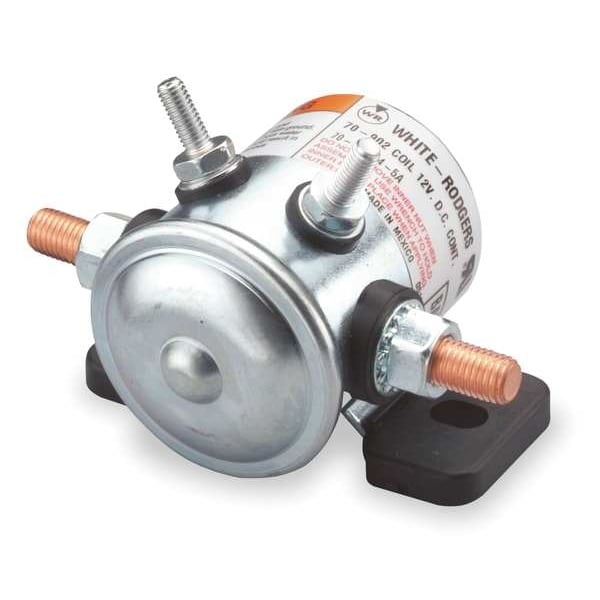

Solenoide de corriente continua, 12V, 80 amperios.
| Item | DC Power Solenoid |
|---|---|
| Coil Voltage DC | 12 V DC |
| Amps | 80 |
| Contact Form | SPST-NO |
| Duty Cycle | Continuous |

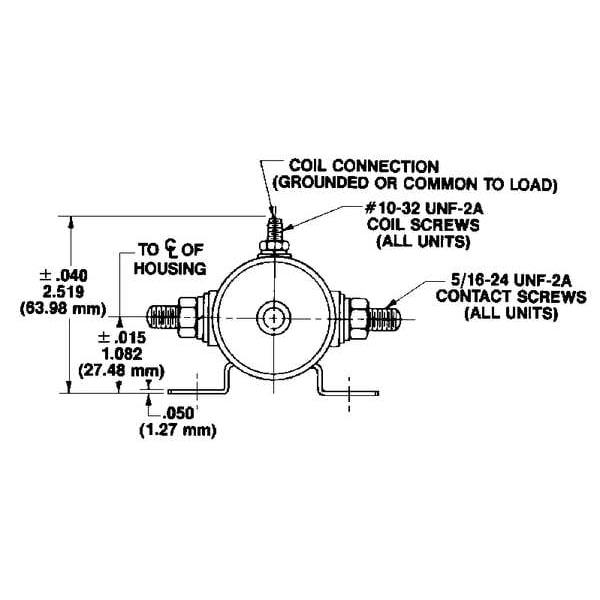

| Coil Termination | #10-32 UNF-2A Thread |
| Enclosure | Dust Resistant |
| Contact Material | Copper |
| Coil Type | Isolated |
| Mounting Base | Standard Bracket |
| Contact Termination | 5/16 in-24 UNF-2A Thread |
| Series | 70 |
| Standards | UL 538, File AU2138 |
| Includes | Not Applicable |

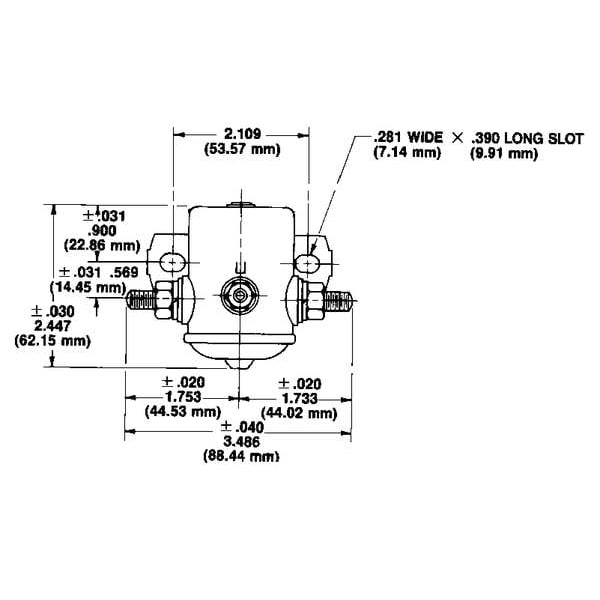

| Length | 2.47 in |
| Contact Rating | 24 A |
| Coil Resistance | 16 ohms |
| Temperature Range | -40 to 122°F |
| Height | 2.4 in |
| Width | 3.48 in |
| Maximum Operating Temperature | 122 deg F |
| Weight | 14 oz |
| Resistance Properties | Dust Resistant |
| Electrical Operating Durability | 100,000 |
| Dielectric Strength | 500 V |
| Coil Voltage | 12 V DC |
| Minimum Operating Temperature | -40 deg F |
| Power Consumption | 9 W |
| Current Rating | 80 A |
| Mechanical Operating Durability | 250,000 |
| Number of Terminals | 4 |
| Overall Height | 2.4 in |
| Operating Temperature - Maximum | 122 deg F |
| Overall Length | 2.47 in |
| Operating Temperature - Minimum | -40 deg F |
| Overall Width | 3.48 in |
| Package Quantity | 1 |
