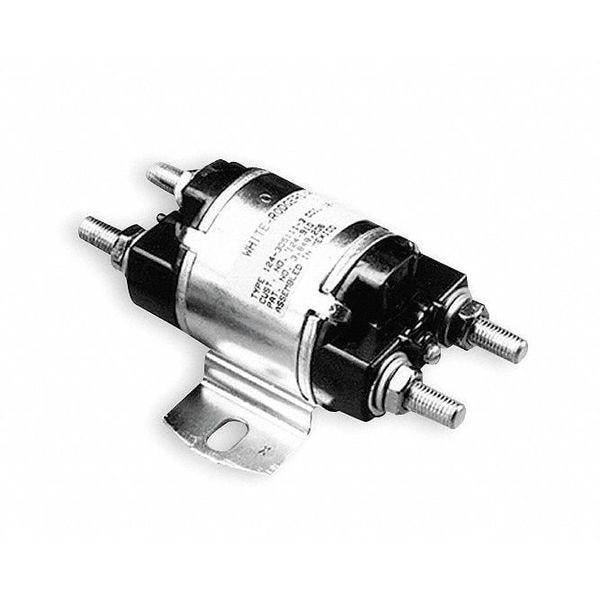

Solenoide de corriente continua (DC), 24V, 100 amperios.
| Item | DC Power Solenoid |
|---|---|
| Coil Voltage DC | 24 V DC |
| Amps | 100/50 |
| Contact Form | SPDT |
| Duty Cycle | Continuous |
| Coil Termination | #10-32 UNF-2A Thread |
| Enclosure | Dust Resistant |
| Series | 124 |
| Includes | Not Applicable |
| Coil Type | Isolated |
| Contact Material | Silver Alloy |
| Contact Termination | 5/16 in-24 UNF-2A Thread |
| Mounting Base | Standard Bracket |
| Length | 4.69 in |
| Coil Resistance | 53 ohms |
| Contact Rating | 24 A |
| Width | 3.13 in |
| Height | 2.19 in |
| Temperature Range | -40 to 149°F |
| Coil Voltage | 24 V DC |
| Minimum Operating Temperature | -40 deg F |
| Maximum Operating Temperature | 149 deg F |
| Current Rating | 150 A |
| Weight | 19 oz |
| Resistance Properties | Dust Resistant, Water Resistant |
| Number of Terminals | 6 |
| Overall Width | 3.13 in |
| Overall Length | 4.69 in |
| Overall Height | 2.19 in |
| Operating Temperature - Minimum | -40 deg F |
| Operating Temperature - Maximum | 149 deg F |
| Package Quantity | 1 |
