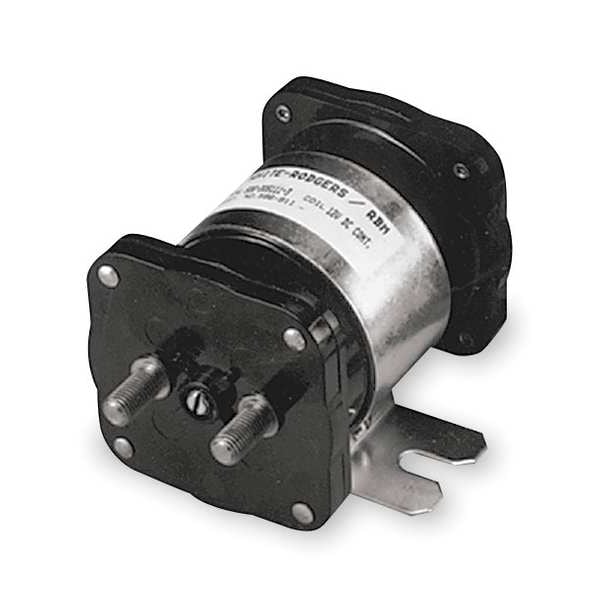

Solenoid de alimentación DC, 36V, 200 amperios.
| Item | DC Power Solenoid |
|---|---|
| Coil Voltage DC | 36 V DC |
| Amps | 2 |
| Contact Form | SPDT |
| Duty Cycle | Continuous |
| Coil Termination | #10-32 UNF-2A Thread |
| Contact Termination | 5/16 in-24 UNF-2A Thread |
| Series | 586 |
| Contact Material | Silver Alloy |
| Includes | Not Applicable |
| Mounting Base | Standard Bracket |
| Enclosure | Water Resistant |
| Standards | UR AU2138 |
| Coil Type | Isolated |
| Height | 2.9 in |
| Coil Resistance | 120 ohms |
| Width | 3.3 in |
| Length | 4.61 in |
| Contact Rating | 36 A |
| Temperature Range | -40 to 149°F |
| Resistance Properties | Dust Resistant, Water Resistant |
| Mechanical Operating Durability | 100,000 |
| Current Rating | 200 A |
| Coil Voltage | 36 V DC |
| Dielectric Strength | 500 V |
| Electrical Operating Durability | 50,000 |
| Minimum Operating Temperature | -40 deg F |
| Weight | 26 oz |
| Maximum Operating Temperature | 149 deg F |
| Power Consumption | 12 W |
| Number of Terminals | 6 |
| Operating Temperature - Minimum | -40 deg F |
| Overall Height | 2.9 in |
| Overall Width | 3.3 in |
| Operating Temperature - Maximum | 149 deg F |
| Overall Length | 4.61 in |
| Package Quantity | 1 |
