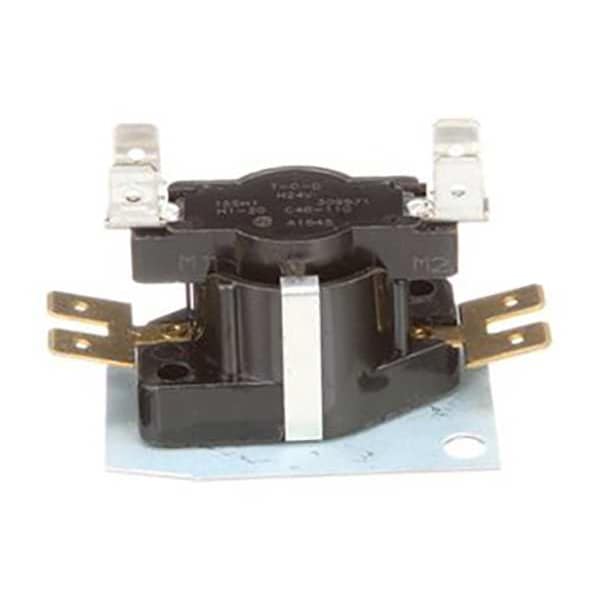

Electric Sequencer, 1-15/16" H, 3-13/64" W
| Resistive Amps @ 120V | 25 A |
|---|---|
| Width (In.) | 3-13/64 |
| Main Switch Off Time (Sec.) | 1 to 110 |
| On Time (Seconds) | 1 to 110 |
| Off Time (Seconds) | 1 to 110 |
| Locked Rotor Amps @ 120V | 72 A |
| Type | Electric Heat Sequencer for Replacement of Fan/Heat Sequencing Functions |
| Number of Timings | 2 |
| Number of Switches | 4 |
| Height (In.) | 1-15/16 |
| Resistive Amps @ 240V | 25 A |
| Aux. Switch On Time (Sec.) | 1 to 110 |
| Control Volts | 24 V |
| Aux. Switch Off Time (Sec.) | 1 to 110 |
| Pilot Duty 120/480V (VA) | 125 VA |
| Full Load Amps @ 240VAC | 7 A |
| Locked Rotor Amps @ 240V | 42 A |
| Full Load Amps @ 120VAC | 14 A |
| Resistive Amps @ 480V | 12.5 A |
| Depth (In.) | 8 |
| Item | Electric Sequencer |
| Main Switch On Time (Sec.) | 1 to 110 |
| Full Load Current @ 240V AC | 7 A |
| Pilot Duty @ 120V AC | 120 VA |
| Main Switch Off Maximum | 110 sec |
| Locked Rotor Current @ 240V AC | 42 A |
| Main Switch On Maximum | 110 sec |
| Overall Depth | 8 in |
| Resistive Load Current @ 240V AC | 25 A |
| Main Switch Off Minimum | 1 sec |
| Resistive Load Current @ 120V AC | 25 A |
| Operating Temperature - Minimum | -50 deg F |
| Standards | UL Listed |
| Auxiliary Switch Off Maximum | 110 sec |
| Full Load Current @ 120V AC | 14 A |
| Voltage | 24V AC |
| Auxiliary Switch Off Minimum | 1 sec |
| Overall Length | 1-15/16 in |
| Main Switch On Minimum | 1 sec |
| Pilot Duty @ 240V AC | 240 VA |
| Operating Temperature - Maximum | 165 deg F |
| Application | Fan and Heat Sequencing Functions |
| Locked Rotor Current @ 120V AC | 72 A |
| Overall Width | 3-3/16 in |
| Auxiliary Switch On Minimum | 11 sec |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
