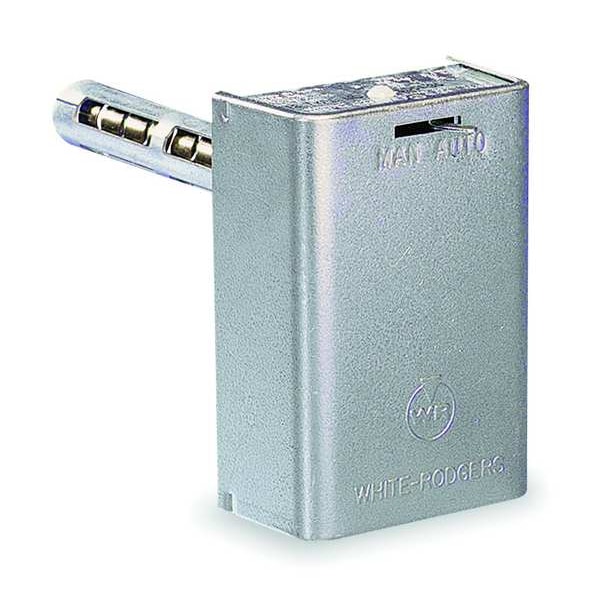

Fan and Limit Control, Automatic Reset, Fan 50 to 265, Limit 100 to 300
| Item | Fan and Limit Control |
|---|---|
| Temp. Range (F) | 50 to 265, 100 to 300 |
| Type | Adjustable Temp, Auto Reset |
| Switch Type | SPDT |
| Depth (In.) | 1-5/8 |
| Width (In.) | 3 |
| Height (In.) | 4-3/8 |
| Switch Closes @ (F) | 265 Degrees F |
| Element Type | Bi-Metal Rod |
| Inductive Amps @ 120V | 6 A |
| Fan Off Temp. (F) | 50 Degrees F |
| Switch Action | Fan - Close on Rise, Limit - Open on Rise |
| Inductive Amps @ 240V | 10 A |
| Element Insertion Length (In.) | 5 |
| Differential | Fan Adj. 15 Degrees F, Limit Fixed 25 Degrees F |
| Fan On Temp. (F) | 265 Degrees F |
| Switch Opening Temperature | 50 deg F, 300 deg F |
| Differential Adjustability | Adjustable |
| Limit Minimum Control Temperature | 100 deg F |
| Switch Closing Temperature | 100 deg F, 265 deg F |
| Minimum Temperature Differential Setting | 15 deg F |
| Overall Width | 2-7/8 in |
| Application | Fan and Limit Control |
| Overall Depth | 1-5/8 in |
| Temperature Differential | 15 deg F, 25 deg F |
| Input Voltage | 120V AC, 240V AC, 24V AC |
| Standards | CSA Certified, UL Listed |
| Insertion Length | 5 in |
| Product Type | Fan and Limit Control |
| Reset Type | Automatic Reset |
| Overall Height | 4-1/4 in |
| Mounting | Plenum Mount |
| Maximum Operating Temperature | 300 deg F |
| Limit Maximum Control Temperature | 300 deg F |
| Maximum Temperature Differential Setting | 25 deg F |
| Fan Maximum Control Temperature | 265 deg F |
| Fan Minimum Control Temperature | 50 deg F |
| Contact Form | SPDT |
| Contact Rating (AC) | FLA: 10 A @ 120V, FLA: 14 A @ 120V, FLA: 5.6 A @ 24V, FLA: 6 A @ 24V, FLA: 6 A @ 240V, FLA: 7 A @ 240V |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
