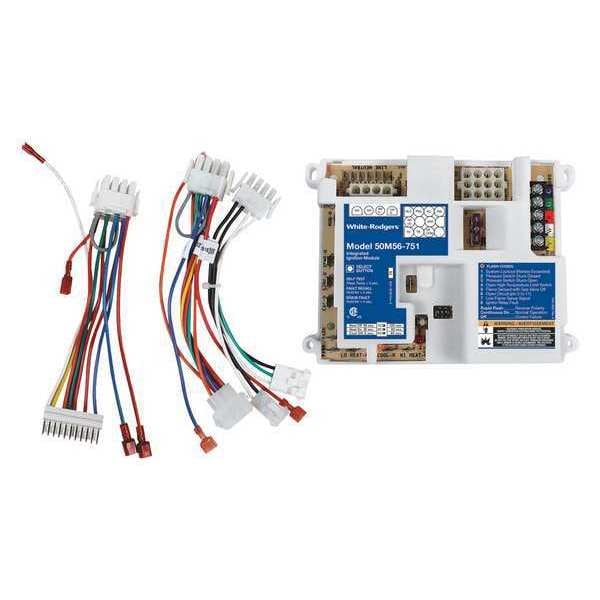

Furnace Board, 25VAC, With Wiring Adapter
| Item | Furnace Control Board |
|---|---|
| Replaces | Carrier Mfr. No. 325878-751, HK42FZ004, HK42FZ007, HK42FZ008, HK42FZ009, HK42FZ011, HK42FZ013, HK42FZ016, HK42FZ034, ICM282A |
| Input Voltage | 25V AC |
| Control Volts | 25 V |
| Type | OEM Replacement |
| For Use With | Carrier Furnace Systems |
| Includes | Wiring Adapter |
| Cool Blower On Delay Setting | 2 sec |
| Board Type | Integrated |
| Furnace Control Functions | Cool, High Heat, Low Heat |
| Ignition Type | Hot Surface Igniter |
| Heat Blower On Delay Setting | 60 sec |
| OEM Replacement Part Number | 1172550, 1183599, 325878-751, 50M56-751, CEPL13043B-01, HK42FZ004, HK42FZ007, HK42FZ008, HK42FZ009, HK42FZ011, HK42FZ013, HK42FZ016, HK42FZ034, ICM282A |
| Compatible Inducer Motor Type | Permanent Split Capacitor |
| Minimum Relative Humidity | 5 % |
| Compatible Blower Motor Type | Permanent Split Capacitor |
| Standards | cCSAus |
| Compatible with Brand | Carrier, ICP, White-Rodgers |
| Control Voltage | 25 V |
| Heat Blower Off Delay Setting | 1.33 sec |
| Maximum Relative Humidity | 93 % |
| Number of Stages | 1 |
| Control Mounting Type | Flush Mount |
| Overall Height | 7 in |
| Product Type | Furnace Control Board |
| Terminal Designations | C, DHUM, G, R, W, Y/Y2, Y1 |
| Igniter Voltage | 120V AC |
| Number of Speed Taps | 3 |
| Items Controlled | Air Cleaners, Blowers, Gas Valves, Humidifiers, Ignitors, Inducers |
| Overall Width | 5-1/4 in |
| Replacement Type | OEM |
| Overall Depth | 1-1/4 in |
| Twinning Compatibility | Twinning Compatible |
| Minimum Operating Temperature | -40 deg F |
| Cool Blower Off Delay Setting | 90 sec |
| Maximum Operating Temperature | 175 deg F |
| Connection Interface Type | Spade Terminal |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
