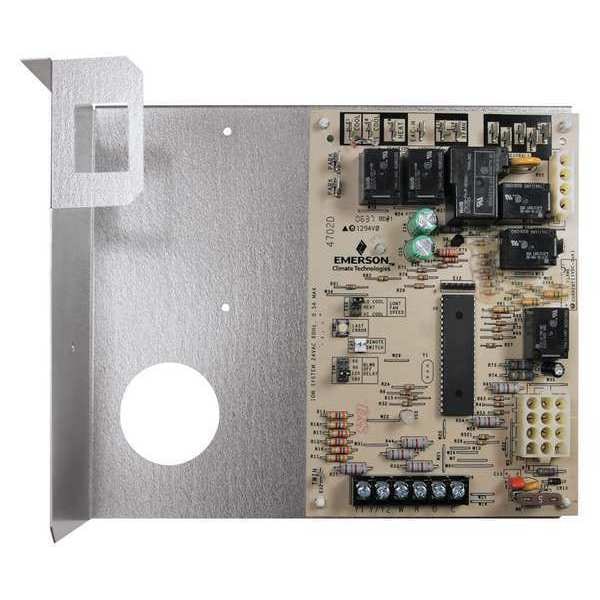

Furnace Board, For York Furnace Systems,
| Item | Furnace Control Board |
|---|---|
| Replaces | York Mfr. No. 265901, 265902, S1-03100662000, S1-03101250000, S1-03101266000, S103101267000, S1-03101267001, S103101284000, S103101933000, S103101972000, S103109167000, S13310102956000, S!33103010000 |
| Type | OEM Replacement |
| Control Volts | 25 V |
| Input Voltage | 25V AC |
| For Use With | York Furnace Systems |
| Cool Blower On Delay Setting | 0 sec |
| Minimum Operating Temperature | -40 deg F |
| Items Controlled | Air Cleaners, Blowers, Gas Valves, Humidifiers, Ignitors, Inducers |
| Compatible Blower Motor Type | Permanent Split Capacitor |
| OEM Replacement Part Number | 265901, 265902, 50A56-242, 50A56-243, 50A56-956, 539617, ICM2808, S1-03100662000, S1-03101250000, S1-03101266000, S1-03101267000, S1-03101267001, S1-03101284000, S1-03101933000, S1-03101972000, S1-03101973000, S1-03109167000, S1-33102956000, S1-33103010000 |
| Connection Interface Type | Spade Terminal |
| Twinning Compatibility | Twinning Compatible |
| Heat Blower Off Delay Setting | 60 sec, 90 sec, 120 sec, 180 sec |
| Heat Blower On Delay Setting | 30 sec |
| Replacement Type | OEM |
| Product Type | Furnace Control Board |
| Cool Blower Off Delay Setting | 60 sec |
| Igniter Voltage | 120V AC |
| Number of Stages | 1 |
| Terminal Designations | C, G, R, W, Y/Y2, Y1 |
| Board Type | Integrated |
| Control Mounting Type | Standoff |
| Number of Speed Taps | 3 |
| Maximum Operating Temperature | 176 deg F |
| Compatible Inducer Motor Type | Permanent Split Capacitor |
| Furnace Control Functions | Heat, High Cool, Low Cool |
| Maximum Relative Humidity | 93 % |
| Control Voltage | 25 V |
| Minimum Relative Humidity | 5 % |
| Ignition Type | Hot Surface Igniter |
| Compatible with Brand | ICM, White-Rodgers, York |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
