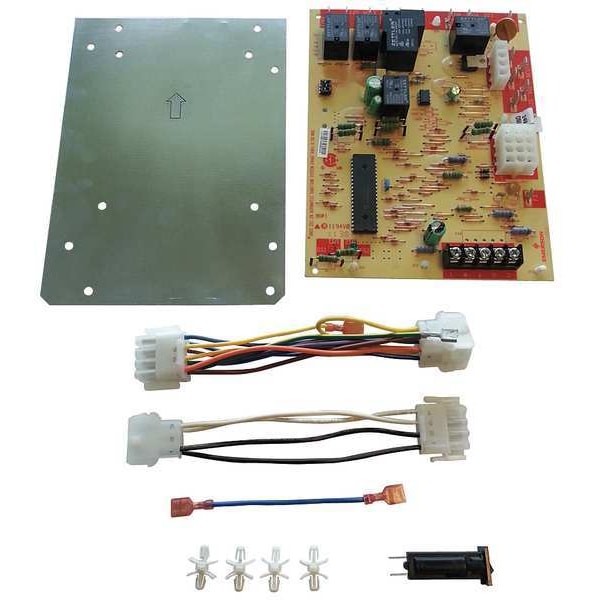

Furnace Control Board
| Item | Replacement Control Board |
|---|---|
| Replaces | Lennox Models 100925-01, 100925-02, 100925-03, 10M93, 32M8801, 56L84, 56L8401, 24L8501, 63K89, 63K8901, 97L4801, 17W9201, 23W5101, 30W2501, 69M0801, 69M1501, 83M001, White Rodgers Models 50A66-843, 50A62-121, 50A66-122, 5066-123, 50A65-121, 50A62-120, 50A62-820, 50A66-123 |
| Agency Compliance | CSA |
| Type | OEM Replacement |
| Input Voltage | 25V AC |
| Includes | ECMx Motor Control, PSC, Variable Speed |
| For Use With | Commercial HVAC Equipment, Residential |
| Maximum Relative Humidity | 93 % |
| Replacement Type | OEM |
| Ignition Type | Hot Surface Igniter |
| Compatible Blower Motor Type | Permanent Split Capacitor |
| Minimum Relative Humidity | 5 % |
| Heat Blower On Delay Setting | 45 sec |
| Control Mounting Type | Standoff |
| Standards | CSA Certified |
| Board Type | Integrated |
| Number of Speed Taps | 3 |
| Compatible with Brand | Lennox, White-Rodgers |
| Compatible Inducer Motor Type | Permanent Split Capacitor |
| Maximum Operating Temperature | 175 deg F |
| Heat Blower Off Delay Setting | 60 sec, 90 sec, 120 sec, 180 sec |
| Cool Blower Off Delay Setting | 45 sec |
| Number of Stages | 1 |
| Furnace Control Functions | Heat, Cool |
| Minimum Operating Temperature | -40 deg F |
| Product Type | Replacement Control Board |
| Items Controlled | Air Cleaners, Blowers, Gas Valves, Humidifiers, Ignitors, Inducers |
| OEM Replacement Part Number | 100925-01, 100925-03, 10M9301, 12L6901, 17W9201, 21D83M-843, 23W5101, 24L8501, 30W2501, 32M8801, 50A62-120, 50A62-121, 50A62-820, 50A65-120, 50A65-121, 50A66-122, 50A66-123, 56L8401, 63K8901, 69M0801, 69M1501, 83M00, 97L4801 |
| Terminal Designations | C, R, W, Y G |
| Control Voltage | 25 V |
| Cool Blower On Delay Setting | 2 sec |
| Twinning Compatibility | Not Twinning Compatible |
| Application | Commercial, HVAC, LP/Natural Gas Furnaces, Furnaces and Heating Units, Residential |
| Igniter Voltage | 80V AC |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
